Weidmuller

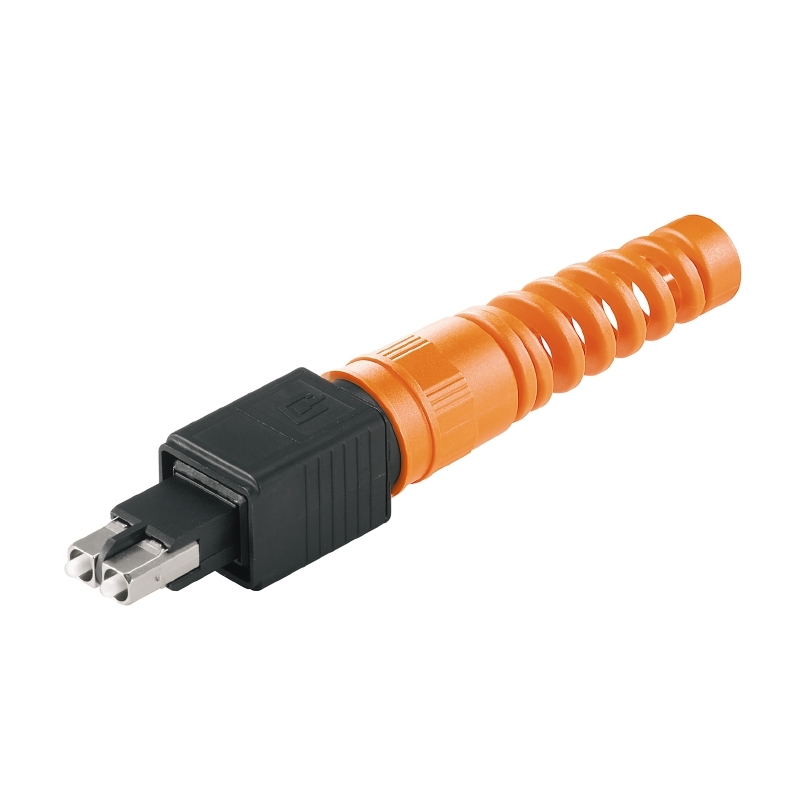

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 外壳材料 | Polyamide (PA), Nylon |
| 工作温度 | -40°C ~ 70°C |
| 连接器类型 | SC |
| 电缆直径 | 10.0mm |
| 外壳颜色 | Black |
| 标准包装 | 1 |
| 反思 | 30dB |
| 连接器类型 | Plug |
| 紧固型 | Push-Pull |
| 衰减 - 典型值 | 0.4dB |
| 插拔次数 | 500 |
| 防护等级 | IP67 - Dust Tight, Waterproof |
| 产品特点 | Cable Clamp, Strain Relief |
| 安装类型 | Free Hanging (In-Line) |
| 单面/双面 | Duplex |
| 衬套颜色 | Orange |
| 其他名称 | IE-PS-V04P-2SC-MM-BP |
| 模式 | Multimode |
| RoHS指令 | Lead free / RoHS Compliant |
| 插入损耗 | 0.5 dB singlemode; 0.4 dB multimode; 1.5 dB POF |
| ETIM 3*0 | EC001121 |
| Net weight | 43.2 g |
| Housing main material | PA UL 94 V0 |
| 版本 | FO connector, Variant 4, SC-Duplex multi-mode, with kink prevention, IP67 |
| GTIN (EAN) | 4032248651849 |
| 类型 | IE-PS-V04P-2SC-MM-BP |
| Housing material, insert | PA, Zinc diecast |
| UNSPSC | 30-21-18-10 |
| Operating temperature | -40 °C...70 °C |
| eClass 5*1 | 27-26-07-08 |
| eClass 8*1 | 19-17-01-25 |
| ETIM 4*0 | EC002641 |
| ETIM 5*0 | EC002641 |
| 连接1 | SCRJ |
| eClass 9*0 | 19-17-01-25 |
| eClass 9*1 | 19-07-01-22 |
| 颜色 | Miscellaneous |
| eClass 7*1 | 27-25-05-04 |
| GOST Approval | POCC DE.ME25.B01411.pdf |
| Connector standard | IEC 61076-3-106 Var. 4, IEC 61754-24 |
| Fibre type | Multimode |
| Return loss (attenuation) | 40 dB singlemode; 30 dB multimode |
| Description of article | Variant 4, SC-Duplex multi-mode, with kink prevention |
| Protection degree | IP67 |
| ETIM 6*0 | EC001122 |
| Sheath diameter, max | 10 mm |
| Plugging cycles | 500 |
| eClass 6*2 | 27-26-07-08 |
| Sheath diameter, min | 5 mm |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
