weidmuller

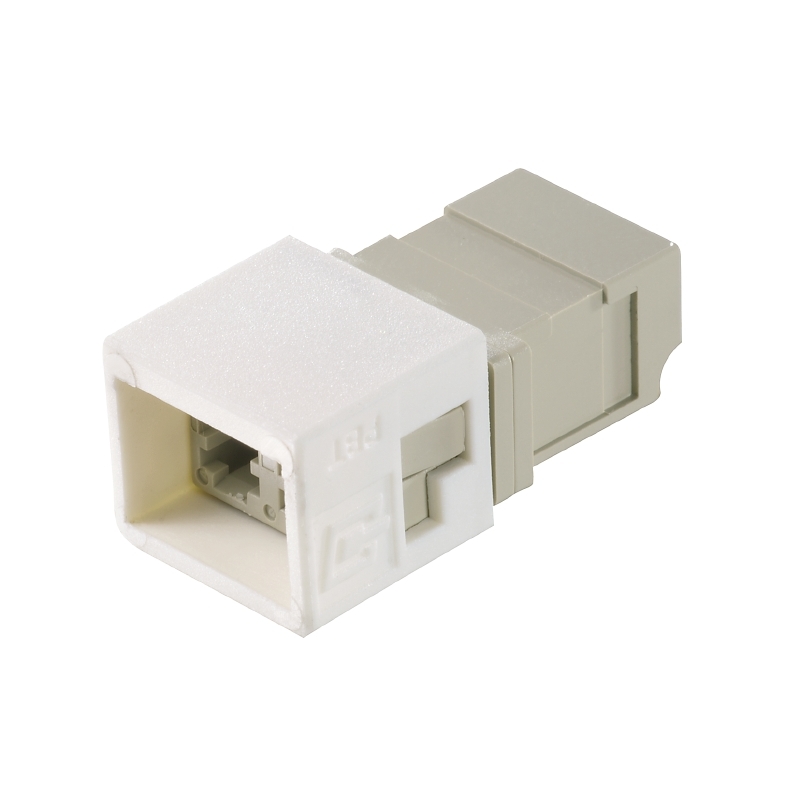

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 外壳材料 | Zinc Die Cast |
| 工作温度 | -40°C ~ 70°C |
| 连接器类型 | LC |
| 外壳颜色 | White |
| 标准包装 | 1 |
| 反思 | 40dB |
| 连接器类型 | Receptacle |
| 阀体材质 | Polybutylene Terephthalate (PBT) |
| 紧固型 | Push-Pull |
| 衰减 - 典型值 | 0.5dB |
| 插拔次数 | 1000 |
| 安装类型 | Free Hanging (In-Line) |
| 单面/双面 | Duplex |
| 其他名称 | IE-BI-LCD-SM-C |
| 模式 | Singlemode |
| RoHS指令 | Lead free / RoHS Compliant |
| 插入损耗 | ≤ 0.5 dB |
| ETIM 3*0 | EC001121 |
| Net weight | 14.9 g |
| Housing main material | PBT diecast zinc |
| 版本 | LC insert, Bulkhead insert LC duplex, singlemode |
| GTIN (EAN) | 4032248645077 |
| 类型 | IE-BI-LCD-SM-C |
| UNSPSC | 30-21-18-01 |
| Operating temperature | -40 °C...70 °C |
| eClass 5*1 | 27-14-40-17 |
| eClass 8*1 | 19-17-01-25 |
| 配置 | Connector and flange insert for variant 1, 4 and 14 housings |
| ETIM 5*0 | EC001121 |
| 连接1 | LC Duplex |
| eClass 9*0 | 19-17-01-25 |
| eClass 9*1 | 19-07-01-22 |
| eClass 7*1 | 27-25-05-04 |
| GOST Approval | POCC DE.ME25.B01411.pdf |
| Connector standard | IEC 61754-20 |
| 湿度 | 0...85 % rel. humidity |
| Fibre type | Singlemode |
| Return loss (attenuation) | ≥ 40 dB |
| Description of article | Bulkhead insert LC duplex, singlemode |
| Protection degree | IP67 with housing |
| ETIM 4*0 | EC001121 |
| ETIM 6*0 | EC001122 |
| Plugging cycles | 1000 |
| eClass 6*2 | 27-25-05-04 |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
