Weidmuller

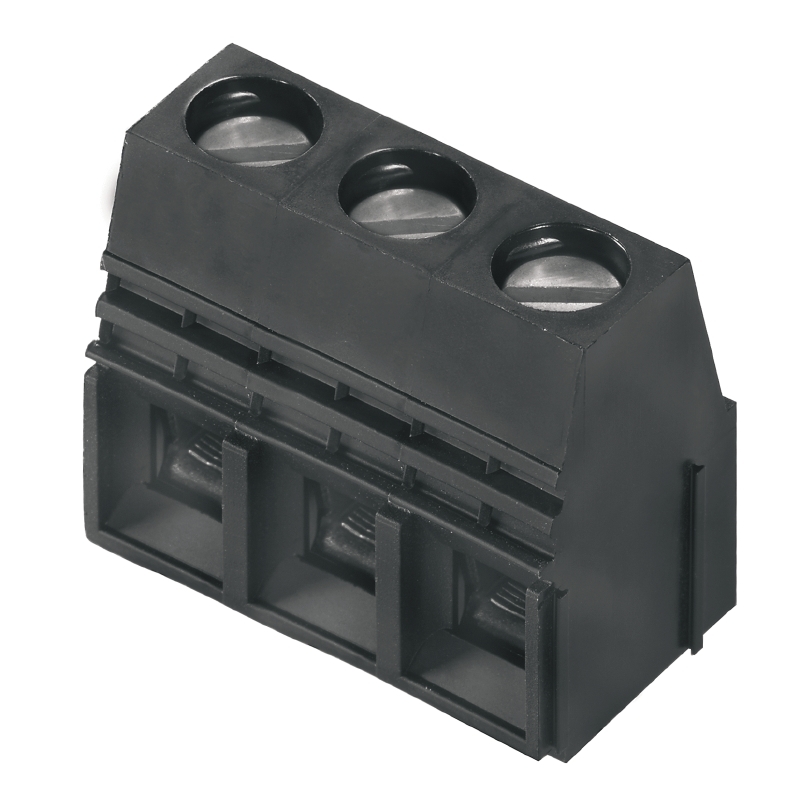

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Bulk |
| 楼层数 | 1 |
| 安装类型 | Through Hole |
| 啮合定位 | Horizontal with Board |
| 线规 | 6-26 AWG |
| 每一级的位置 | 2 |
| 间距 | 0.400" (10.16mm) |
| 外壳材料 | Thermoplastic, Wemid |
| 电流 | 65A |
| 颜色 | Black |
| 工作温度 | -50°C ~ 120°C |
| 螺纹 | M4 |
| 电压 | 300V |
| 导线端子 | Screw - Clamping Yoke, Tension Sleeve |
| 标准包装 | 20 |
| 转矩 - 螺钉 | 1.2-1.5 Nm (10.6-13.3 Lb-In) |
| 触点材料 - 镀层 | Copper Alloy - Tin Plated |
| 产品特点 | Interlocking (Side) |
| RoHS指令 | Lead free / RoHS Compliant |
| Solder eyelet hole diameter (D) | 1.6 mm |
| Net weight | 19.25 g |
| Wire connection cross section AWG, max | AWG 8 |
| Rated voltage (Use group B) | 300 V |
| Pitch in inches (P) | 0.4 inch |
| Stranded, max* H07V-R | 16 mm² |
| Wire connection method | Clamping yoke connection |
| Layer structure of solder connection | 1.5-3 µm Ni / 4-6 µm Sn matt |
| EDA Layout Library (Mentor Graphics Expedition, Mentor Graphics Pads, Altium Designer) | Select your download |
| w plastic collar ferrule, DIN 46228 pt 4, max | 10 mm² |
| Rated voltage (use group B) | 300 V |
| Volume resistance | 0.50 mΩ |
| Conductor outlet direction | 90° |
| Solid, max* H05(07) V-U | 16 mm² |
| Insulating material | Wemid (PA) |
| Rated voltage (use group D) | 300 V |
| Product data | IEC: 1000 V / 76 A / 0.5 - 16 mm²UL: 300 V / 65 A / AWG 26 - AWG 6 |
| Rated voltage (Use group C) | 150 V |
| Tightening torque, min | 1.2 Nm |
| Stranded, min* H07V-R | 6 mm² |
| Tightening torque, max | 1.5 Nm |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 6 kV |
| Insulation resistance | ≥ 108 Ω |
| Clamping range, rated connection, max | 16 mm² |
| Wire connection cross section AWG, min | AWG 22 |
| Rated voltage (use group C) | 150 V |
| Product family | OMNIMATE Power - series LU |
| GTIN (EAN) | 4032248589494 |
| Screwdriver blade | 1.0 x 5.5 |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Short-time withstand current resistance | 2 x 1s with 700 A |
| 版本 | PCB terminal, 10.16 mm, No. of poles: 2, 90°, Solder pin length (l): 4.5 mm, tinned, Black, Clamping yoke connection, Clamping range, rated connection, max.: 16 mm², Box |
| L1 in inches | 0.4 inch |
| 类型 | LU 10.16/02/90 4.5SN BK BX |
| Flexible, min* H05(07) V-K | 0.5 mm² |
| Rated current, min* no* of poles (Ta = 20°C) | 76 A |
| Rated current, max* no* of poles (Ta = 40°C) | 62 A |
| Insulating material group | I |
| Temperature range, installation, max | 120 °C |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 6 kV |
| Solder pin dimensions = d tolerance | 0 / -0,15 mm |
| w* wire end ferrule, DIN 46228 pt 1, min | 2.5 mm² |
| eClass 8*1 | 27-44-04-01 |
| eClass 9*0 | 27-44-04-01 |
| Mounting onto the PCB | THT solder connection |
| Storage temperature, min | -25 °C |
| tested acc* to standard | IEC 60664-1, IEC 61984 |
| Rated current (use group D) | 10 A |
| Storage temperature, max | 55 °C |
| Fitted by customer | Yes |
| Clamping screw | M 4 |
| ROHS | Conform |
| ETIM 3*0 | EC001284 |
| Motion controllers white paper | Download Whitepaper |
| Operating temperature, max | 120 °C |
| Plug gauge acc* to EN 60999 a x b; Ø | 5.4 mm x 5.1 mm; 5.3 mm |
| Max* relative humidity during storage | 80 % |
| CTI | ≥ 600 |
| Touch-safe protection acc* to DIN VDE 57 106 | Safe from finger touch |
| Rated current (use group C) | 65 A |
| Touch-safe protection acc* to DIN VDE 0470 | IP20 plugged/ IP10 unplugged |
| Pitch in mm (P) | 10.16 mm |
| Contact surface | tinned |
| ETIM 5*0 | EC002643 |
| Rated voltage for surge voltage class / pollution degree III/3 | 690 V |
| IPC conformity | The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request. |
| L1 in mm | 10.16 mm |
| eClass 7*1 | 27-44-04-01 |
| Screwdriver blade standard | DIN 5264 |
| Rated voltage for surge voltage class / pollution degree II/2 | 1,000 V |
| Rated current, min* no* of poles (Ta = 40°C) | 76 A |
| Temperature range, installation, min | -25 °C |
| Solder pin dimensions | 1.2 x 1.2 mm |
| Rated current (use group B) | 65 A |
| Stripping length | 12 mm |
| Solid, min* H05(07) V-U | 0.5 mm² |
| w plastic collar ferrule, DIN 46228 pt 4, min | 2.5 mm² |
| Rated voltage for surge voltage class / pollution degree III/2 | 690 V |
| eClass 6*2 | 27-26-11-01 |
| Wire cross-section, AWG, min | AWG 26 |
| Certificate No* (CSA) | 200039-1198743 |
| Colour chart (similar) | RAL 9011 |
| No* of poles | 2 |
| Wire cross-section, AWG, max | AWG 6 |
| Number of solder pins per pole | 2 |
| Engineering data | EPLAN |
| 行数 | 1 |
| Contact material | E-Cu |
| Clamping range, rated connection, min | 0.14 mm² |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Flexible, max* H05(07) V-K | 16 mm² |
| Certificate No* (UR) | E60693 |
| ETIM 4*0 | EC002643 |
| 注 | Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. |
| Max* adjacent poles per row | 10 |
| Rated current, max* no* of poles (Ta = 20°C) | 72 A |
| Solder pin length (l) | 4.5 mm |
| UL 94 flammability rating | V-0 |
| w wire end ferrule, DIN 46228 pt 1, max | 10 mm² |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| 颜色 | Black |
| ETIM 6*0 | EC002643 |
| Operating temperature, min | -50 °C |
