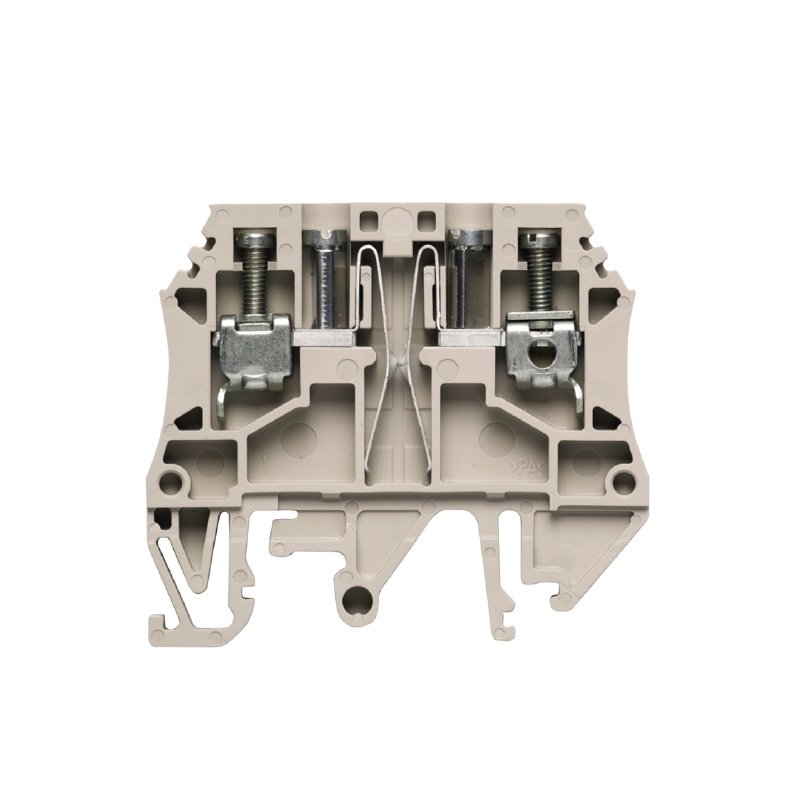

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Disconnect Terminal Blocks |
| 电路数 | 1 |
| 身体上的取向 | Straight |
| 行数 | 2 |
| 外壳颜色 | Dark Beige |
| 线径规格 | 10-26 AWG |
| 标准包装 | Bulk |
| 楼层数 | 1 |
| 断开类型 | Component, Removable Plug |
| 线规或范围 - mm² | 0.5-6mm² |
| 颜色 | Beige |
| 剥线长度 | 10mm |
| 端接类型 | Screw |
| 线规或范围 - AWG | 10-26 AWG |
| 位置数 | 2 |
| 材料 - 绝缘体 | Thermoplastic, Wemid |
| 电流 - IEC | 10A |
| 电压 - IEC | 500V |
| 电流 - UL | 8A |
| 电压 - UL | 300V |
| 材料阻燃等级 | UL94 V-0 |
| 终端 - 宽度 | 6.0mm |
| RoHS指令 | Lead free / RoHS Compliant |
| Net weight | 13.45 g |
| 宽度 | 6 mm |
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
| Rated impulse withstand voltage | 6 kV |
| Voltage size D (cURus) | 300 V |
| Height (inches) | 2.224 inch |
| Wire connection cross section, solid core, min* rated connection | 0.5 mm² |
| Clamping range, rated connection, min | 0.13 mm² |
| Wire cross section min* (CSA) | 26 AWG |
| 颜色 | Dark Beige |
| Wire connection cross section, stranded, rated connection, min | 1.5 mm² |
| PEN function | No |
| Wire connection cross-section, finely stranded, min | 0.5 mm² |
| Number of connections | 2 |
| Tightening torque, min | 0.5 Nm |
| N-function | No |
| Tightening torque, max | 0.8 Nm |
| Conductor size Factory wiring min* (cURus) | 26 AWG |
| Clamping range, rated connection, max | 6 mm² |
| Wire connection cross section, solid core max* rated connection | 6 mm² |
| No* of clamping points per level | 2 |
| Current size C (CSA) | 8 A |
| Pollution severity | 3 |
| Mounting rail | TS 35 |
| UL 94 flammability rating | V-0 |
| Wire connection cross section, finely stranded, max | 6 mm² |
| 版本 | Screw connection, Disconnection element, One end without connector |
| eClass 9*0 | 27-14-11-26 |
| 材质 | Wemid |
| PE function | No |
| eClass 8*1 | 27-14-11-26 |
| PE connection | No |
| eClass 9*1 | 27-14-11-26 |
| Connection direction | on side |
| End cover plate required | Yes |
| eClass 7*1 | 27-14-11-26 |
| Clamping screw | M 3 |
| Type of connection | Screw connection |
| ROHS | Conform |
| ETIM 3*0 | EC000902 |
| Certificate No* (cURus) | E60693 |
| GTIN (EAN) | 4032248484041 |
| Type of mounting | Snap-on |
| Current at maximum wires | 11 A |
| Integral test socket | Yes |
| 额定电流 | 10 A |
| Open sides | Open |
| UNSPSC | 30-21-18-11 |
| Depth including DIN rail | 50 mm |
| eClass 5*1 | 27-14-11-26 |
| Gauge to IEC 60947-1 | A4 |
| ETIM 5*0 | EC000902 |
| Number of levels | 1 |
| Depth (inches) | 1.909 inch |
| Levels cross-connected internally | No |
| Wire cross section max* (cURus) | 10 AWG |
| Continuous operating temp, min | -50 °C |
| Wire cross section min* (cURus) | 26 AWG |
| Declaration of Conformity | DE_PT1004_20160418_979_ISSUE01.pdf |
| Continuous operating temp, max | 120 °C |
| TS 35 offset | 28 mm |
| Stripping length | 10 mm |
| 身高 | 56.5 mm |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min | 0.5 mm² |
| Conductor size Factory wiring max* (cURus) | 10 AWG |
| eClass 6*2 | 27-14-11-26 |
| Certificate No* (CSA) | 200039-1057876 |
| Number of potentials per tier | 1 |
| Voltage size C (CSA) | 150 V |
| Engineering data | EPLAN |
| Number of potentials | 1 |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max | 4 mm² |
| Slitting | pluggable |
| Rated cross-section | 4 mm² |
| Wire connection cross section, stranded, rated connection, max | 6 mm² |
| Current size D (cURus) | 8 A |
| ETIM 4*0 | EC000902 |
| Conductor size Field wiring min* (cURus) | 26 AWG |
| Blade size | 0.6 x 3.5 mm |
| Wire cross section max* (CSA) | 10 AWG |
| 深度 | 48.5 mm |
| Cross-disconnect | without |
| Torque level with DMS electric screwdriver | 2 |
| Conductor size Field wiring max* (cURus) | 10 AWG |
| Width (inches) | 0.236 inch |
| ETIM 6*0 | EC000902 |
| 额定电压 | 500 V |
