weidmuller

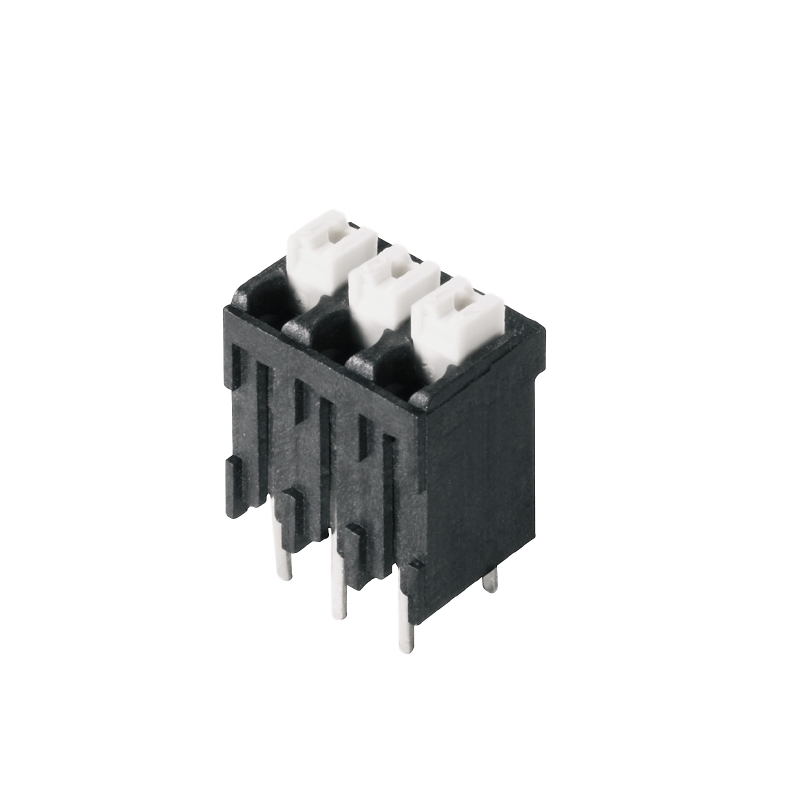

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Spring Cage |
| 触点数 | 24 |
| 间距 | 3.81 mm |
| 端接方式 | Solder |
| 安装 | Through Hole |
| 身体上的取向 | Straight |
| 行数 | 1 |
| 外壳颜色 | Black |
| 线径规格 | 16-24 AWG |
| 标准包装 | Bulk |
| 封装 | Tube |
| 楼层数 | 1 |
| 安装类型 | Through Hole |
| 啮合定位 | Vertical with Board |
| 线规 | 16-24 AWG |
| 每一级的位置 | 24 |
| 外壳材料 | Liquid Crystal Polymer (LCP), Glass Filled |
| 电流 | 12A |
| 颜色 | Black |
| 工作温度 | -50°C ~ 240°C |
| 电压 | 300V |
| 导线端子 | Screwless - Leg Spring, Push-In Spring |
| 触点材料 - 镀层 | Copper Alloy - Tin Plated |
| 产品特点 | Push Button Actuated |
| RoHS指令 | Lead free / RoHS Compliant |
| Solder eyelet hole diameter (D) | 1.1 mm |
| Net weight | 18.83 g |
| Wire connection cross section AWG, max | AWG 16 |
| Rated voltage (Use group B) | 300 V |
| Pitch in inches (P) | 0.15 inch |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 2.5 kV |
| Wire connection method | PUSH IN |
| Layer structure of solder connection | 4-6 µm Sn matt |
| EDA Layout Library (Mentor Graphics Expedition, Mentor Graphics Pads, Altium Designer) | Select your download |
| w plastic collar ferrule, DIN 46228 pt 4, max | 0.75 mm² |
| Rated voltage (use group B) | 300 V |
| Volume resistance | 1.60 mΩ |
| Conductor outlet direction | 180° |
| Solid, max* H05(07) V-U | 1.5 mm² |
| Insulating material | LCP GF |
| Rated voltage (use group D) | 300 V |
| Product data | IEC: 320 V / 17.5 A / 0.2 - 1.5 mm²UL: 300 V / 12 A / AWG 24 - AWG 16 |
| Moisture Level (MSL) | 1 |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 2.5 kV |
| Insulation resistance | ≥ 108 Ω |
| Clamping range, rated connection, max | 1.5 mm² |
| Wire connection cross section AWG, min | AWG 24 |
| Product family | OMNIMATE Signal - series LSF |
| CAD Library (P-CAD Format - ASCII) | LSF-SMT.zip |
| UL 94 flammability rating | V-0 |
| Rated current, min* no* of poles (Ta = 40°C) | 17.5 A |
| Short-time withstand current resistance | 3 x 1s with 80 A |
| 版本 | PCB terminal, 3.81 mm, No. of poles: 24, 180°, Solder pin length (l): 1.5 mm, Black, PUSH IN, Clamping range, rated connection, max.: 1.5 mm², Tube; Rs = 109 - 1012 Ω |
| L1 in inches | 3.45 inch |
| Flexible, min* H05(07) V-K | 0.2 mm² |
| Rated current, min* no* of poles (Ta = 20°C) | 17.5 A |
| Rated current, max* no* of poles (Ta = 40°C) | 14 A |
| Insulating material group | IIIa |
| Temperature range, installation, max | 120 °C |
| Solder pin dimensions = d tolerance | 0 / -0.1 mm |
| w* wire end ferrule, DIN 46228 pt 1, min | 0.25 mm² |
| eClass 8*1 | 27-44-04-01 |
| eClass 9*0 | 27-44-04-01 |
| Mounting onto the PCB | THT/THR solder connection |
| Storage temperature, min | -25 °C |
| tested acc* to standard | IEC 60664-1, IEC 61984 |
| Rated current (use group D) | 10 A |
| Storage temperature, max | 55 °C |
| Fitted by customer | No |
| ROHS | Conform |
| ETIM 3*0 | EC001284 |
| Operating temperature, max | 120 °C |
| Certificate No* (cURus) | E60693 |
| GTIN (EAN) | 4032248447121 |
| Max* relative humidity during storage | 80 % |
| CTI | ≥ 175 |
| Touch-safe protection acc* to DIN VDE 0470 | IP 20 |
| UNSPSC | 30-21-18-11 |
| Pitch in mm (P) | 3.81 mm |
| eClass 5*1 | 27-26-11-01 |
| ETIM 5*0 | EC002643 |
| Rated voltage for surge voltage class / pollution degree III/3 | 160 V |
| IPC conformity | The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request. |
| L1 in mm | 87.63 mm |
| eClass 7*1 | 27-44-04-01 |
| Solder pin length tolerance | +0.1 / -0.3 mm |
| Rated voltage for surge voltage class / pollution degree II/2 | 320 V |
| Touch-safe protection acc* to DIN VDE 57 106 | Safe from finger touch |
| Temperature range, installation, min | -30 °C |
| Solder pin dimensions | 0.35 x 0.8 mm |
| Rated current (use group B) | 12 A |
| Stripping length | 8 mm |
| Solid, min* H05(07) V-U | 0.2 mm² |
| w plastic collar ferrule, DIN 46228 pt 4, min | 0.25 mm² |
| Rated voltage for surge voltage class / pollution degree III/2 | 160 V |
| eClass 6*2 | 27-26-11-01 |
| Wire cross-section, AWG, min | AWG 24 |
| Certificate No* (CSA) | 200039-1664286 |
| Colour chart (similar) | RAL 9011 |
| No* of poles | 24 |
| CAD Library (P-CAD Format - Standard) | LSF-SMT.zip |
| Wire cross-section, AWG, max | AWG 16 |
| Number of solder pins per pole | 2 |
| Engineering data | EPLAN |
| 行数 | 1 |
| Contact material | Cu-Leg |
| Clamping range, rated connection, min | 0.13 mm² |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Flexible, max* H05(07) V-K | 1.5 mm² |
| SMT white paper | Download Whitepaper |
| ETIM 4*0 | EC002643 |
| 注 | Additional push button colours on request Operating force of slider max. 40 N Rated current related to rated cross-section & min. No. of poles. Wire end ferrule with plastic collar to DIN 46228/4 Wire end ferrule without plastic collar to DIN 46228/1 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. Crimping shape "A" for wire end ferrules with PZ 6/5 crimping tool are recommended for the largest cable sizes. |
| Rated current, max* no* of poles (Ta = 20°C) | 16 A |
| Solder pin length (l) | 1.5 mm |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 2.5 kV |
| w wire end ferrule, DIN 46228 pt 1, max | 1.5 mm² |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| 颜色 | Black |
| ETIM 6*0 | EC002643 |
| Operating temperature, min | -50 °C |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
