weidmuller

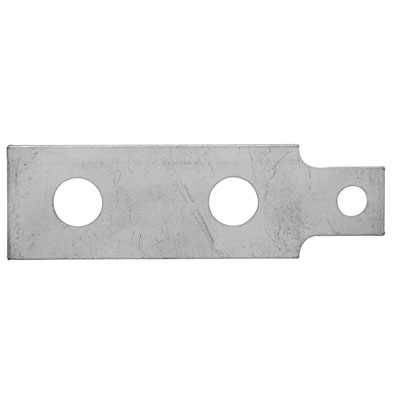

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Jumper |
| 触点数 | 3 |
| 行数 | 1 |
| 标准包装 | Bulk |
| 风格 | Reducer |
| 配用/相关产品 | W Series |
| 位置数 | 3 |
| RoHS指令 | Lead free / RoHS Compliant |
| ETIM 3*0 | EC000489 |
| Mounting rail | none |
| Engineering data | EPLAN |
| Net weight | 57.4 g |
| eClass 9*1 | 27-14-11-40 |
| Pitch in mm (P) | 22 mm |
| 宽度 | 25 mm |
| 版本 | Bolt-type screw terminals, Cross-connector, No. of poles: 3 |
| GTIN (EAN) | 4032248294695 |
| Type of fixing | Screwed |
| Explosion-tested version | No |
| 额定电流 | 269 A |
| 材质 | Copper - zinc |
| UNSPSC | 30-21-18-01 |
| Height (inches) | 3.228 inch |
| Terminal screw, additional connection | M 10 |
| eClass 5*1 | 27-14-11-40 |
| eClass 8*1 | 27-14-11-40 |
| ETIM 4*0 | EC000489 |
| ETIM 5*0 | EC000489 |
| Depth (inches) | 0.157 inch |
| Installation advice | Direct mounting |
| 颜色 | Grey |
| eClass 7*1 | 27-14-11-40 |
| 深度 | 4 mm |
| Width (inches) | 0.984 inch |
| ETIM 6*0 | EC000489 |
| Clamping screw | M 6 |
| 身高 | 82 mm |
| eClass 9*0 | 27-14-11-40 |
| eClass 6*2 | 27-14-11-40 |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
