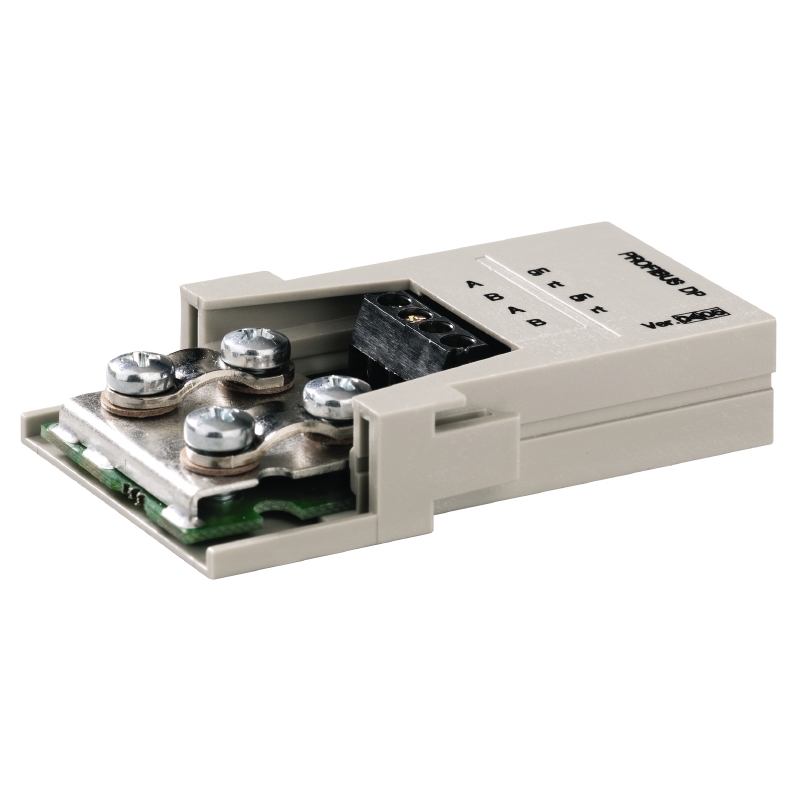

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Housing |
| 触点数 | 8 |
| 行数 | 2 |
| 性别 | M |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| 封装 | Bulk |
| 端接类型 | Screw |
| 连接器类型 | Module, Bus |
| 其他名称 | HDC CM BUS 2BS T PBDP N |
| RoHS指令 | Lead free / RoHS Compliant |
| Limit temperature | -20 °C ... 85 °C |
| ETIM 3*0 | EC001121 |
| Rated current (DIN EN 61984) | 1 A |
| Net weight | 25.6 g |
| 宽度 | 11.4 mm |
| 版本 | Heavy Duty Connectors, HDC insert, ConCept module |
| Wire connection cross section AWG, max | AWG 16 |
| GTIN (EAN) | 4032248275151 |
| Descriptive text technical data | When used properly and as designated, the listed connectors may not be connected or disconnected if there is a live voltage or load! |
| Length (inches) | 1.339 inch |
| 系列 | ConCept module |
| eClass 7*1 | 27-44-05-15 |
| 材质 | Polycarbonate |
| UNSPSC | 30-21-18-01 |
| Height (inches) | 1.866 inch |
| eClass 5*1 | 27-14-34-19 |
| eClass 8*1 | 27-44-05-15 |
| ETIM 4*0 | EC001121 |
| ETIM 5*0 | EC001121 |
| Tightening torque, max* PE connection | 0.6 Nm |
| eClass 9*0 | 27-44-05-15 |
| Rated voltage (DIN EN 61984) | 32 V |
| Insulating material | PC glass-fibre reinforced (UL-listed and railway-certified) |
| eClass 6*2 | 27-14-34-19 |
| 长度 | 34 mm |
| Width (inches) | 0.449 inch |
| Tightening torque, min* PE connection | 0.5 Nm |
| ETIM 6*0 | EC001121 |
| Stripping length, rated connection | 5 mm |
| 身高 | 47.4 mm |
| Total length base | 34 mm |
| Descriptive text accessories | Accessories, see chapter J - Tools, see chapter K |
| Rated impulse voltage (DIN EN 61984) | 0.8 kV |
| Type of connection | Screw connection |
| No* of poles | 2 |
| ROHS | Conform |
| Height of socket | 47.4 mm |
