weidmuller

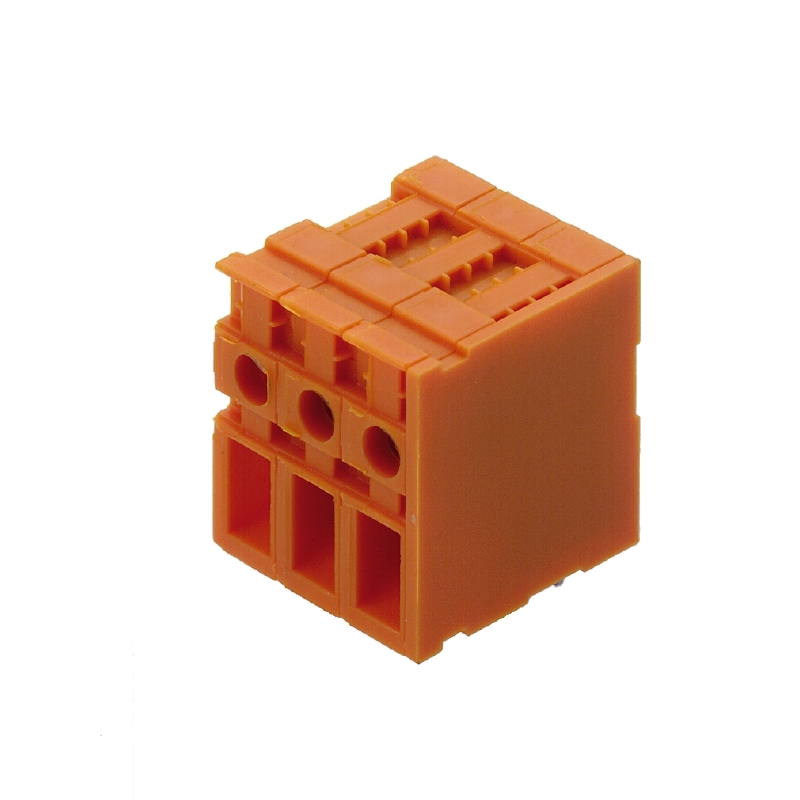

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Terminal Block |
| 触点数 | 11 |
| 间距 | 7.62 mm |
| 端接方式 | Solder |
| 安装 | Through Hole |
| 身体上的取向 | Right Angle |
| 行数 | 1 |
| 外壳颜色 | Orange |
| 线径规格 | 10-22 AWG |
| 标准包装 | Bulk |
| 封装 | Bulk |
| 楼层数 | 1 |
| 安装类型 | Through Hole |
| 啮合定位 | Horizontal with Board |
| 触点材料 - 镀层 | Electrolytic Copper - Tin Plated |
| 线规 | 10-26 AWG |
| 每一级的位置 | 11 |
| 外壳材料 | Polyamide (PA), Nylon |
| 电流 | 30A |
| 颜色 | Orange |
| 工作温度 | -50°C ~ 100°C |
| 螺纹 | M3 |
| 电压 | 300V |
| 导线端子 | Screw - TOP Clamp |
| 转矩 - 螺钉 | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| 其他名称 | TOP4GS7.62/90/11OR |
| RoHS指令 | Lead free / RoHS Compliant |
| Solder eyelet hole diameter (D) | 1.3 mm |
| Net weight | 88.78 g |
| Wire connection cross section AWG, max | AWG 10 |
| Rated voltage (Use group B) | 300 V |
| Pitch in inches (P) | 0.3 inch |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4 kV |
| Wire connection method | TOP connection |
| Layer structure of solder connection | 6-10 µm Sn |
| w plastic collar ferrule, DIN 46228 pt 4, max | 4 mm² |
| Rated voltage (use group B) | 300 V |
| Volume resistance | 1.40 mΩ |
| Conductor outlet direction | 90° |
| Solid, max* H05(07) V-U | 6 mm² |
| Insulating material | PA |
| Rated voltage (use group D) | 300 V |
| Product data | IEC: 1000 V / 32 A / 0.5 - 6 mm²UL: 300 V / 30 A / AWG 26 - AWG 10 |
| Tightening torque, min | 0.5 Nm |
| Tightening torque, max | 0.6 Nm |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4 kV |
| Insulation resistance | ≥ 108 Ω |
| Clamping range, rated connection, max | 6 mm² |
| Wire connection cross section AWG, min | AWG 26 |
| Product family | OMNIMATE Signal - series TOP4G |
| CAD Library (P-CAD Format - ASCII) | TOP 4GS.zip |
| GTIN (EAN) | 4032248215911 |
| Screwdriver blade | 0.6 x 3.5 |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| 版本 | PCB terminal, 7.62 mm, No. of poles: 11, 90°, Solder pin length (l): 3.5 mm, tinned, Orange, TOP connection, Clamping range, rated connection, max.: 6 mm², Box |
| L1 in inches | 3 inch |
| Flexible, min* H05(07) V-K | 0.5 mm² |
| Rated current, min* no* of poles (Ta = 20°C) | 32 A |
| Insulating material group | I |
| Temperature range, installation, max | 100 °C |
| w* wire end ferrule, DIN 46228 pt 1, min | 0.5 mm² |
| eClass 8*1 | 27-44-04-01 |
| eClass 9*0 | 27-44-04-01 |
| Mounting onto the PCB | THT solder connection |
| Storage temperature, min | -25 °C |
| tested acc* to standard | IEC 60664-1, IEC 61984 |
| Rated current (use group D) | 10 A |
| Storage temperature, max | 55 °C |
| Fitted by customer | No |
| Clamping screw | M 3 |
| ROHS | Conform |
| Rated current, min* no* of poles (Ta = 40°C) | 32 A |
| ETIM 3*0 | EC001284 |
| Operating temperature, max | 100 °C |
| Plug gauge acc* to EN 60999 a x b; Ø | 2.8 mm x 2.4 mm |
| Max* relative humidity during storage | 80 % |
| CTI | ≥ 600 |
| UNSPSC | 30-21-18-01 |
| Pitch in mm (P) | 7.62 mm |
| Contact surface | tinned |
| ETIM 5*0 | EC002643 |
| Rated voltage for surge voltage class / pollution degree III/3 | 500 V |
| IPC conformity | The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request. |
| L1 in mm | 76.2 mm |
| eClass 7*1 | 27-44-04-01 |
| Screwdriver blade standard | DIN 5264 |
| Rated voltage for surge voltage class / pollution degree II/2 | 1,000 V |
| CAD Library (P-CAD Format - Standard) | TOP 4GS.zip |
| Temperature range, installation, min | -25 °C |
| Solder pin dimensions | 0.8 x 0.8 mm |
| Rated current (use group B) | 30 A |
| Stripping length | 13 mm |
| Solid, min* H05(07) V-U | 0.5 mm² |
| w plastic collar ferrule, DIN 46228 pt 4, min | 0.5 mm² |
| Rated voltage for surge voltage class / pollution degree III/2 | 630 V |
| eClass 6*2 | 27-26-11-01 |
| Wire cross-section, AWG, min | AWG 26 |
| Certificate No* (CSA) | 154685-1501716 |
| Colour chart (similar) | RAL 2000 |
| No* of poles | 11 |
| Wire cross-section, AWG, max | AWG 10 |
| Number of solder pins per pole | 2 |
| Engineering data | EPLAN |
| 行数 | 1 |
| Contact material | E-Cu |
| Clamping range, rated connection, min | 0.13 mm² |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Flexible, max* H05(07) V-K | 4 mm² |
| Certificate No* (UR) | E60693 |
| ETIM 4*0 | EC002643 |
| 注 | Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 Crimp form A for wire end ferrules with PZ 6/5 crimping tool are recommended for the largest cable sizes. P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. |
| Solder pin length (l) | 3.5 mm |
| UL 94 flammability rating | V-2 |
| w wire end ferrule, DIN 46228 pt 1, max | 4 mm² |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| 颜色 | Orange |
| ETIM 6*0 | EC002643 |
| Operating temperature, min | -50 °C |
