weidmuller

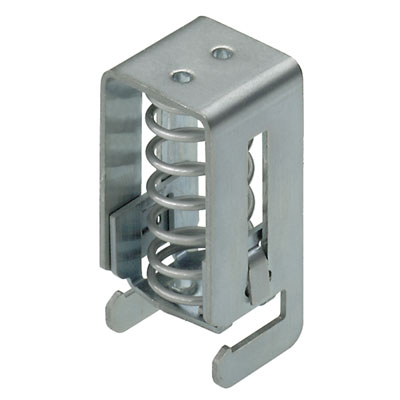

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Retaining Clip |
| 家庭 | 1752131001 |
| 标准包装 | Bulk |
| 配用/相关产品 | Shielded Cables |
| 其他名称 | KLBU/CO/2 |
| RoHS指令 | Lead free / RoHS Compliant |
| ETIM 3*0 | EC000489 |
| Engineering data | EPLAN |
| Net weight | 18.7 g |
| eClass 9*1 | 27-14-11-50 |
| Pitch in mm (P) | 18 mm |
| 宽度 | 21.1 mm |
| 版本 | For a shield connection |
| GTIN (EAN) | 4032248064434 |
| Type of fixing | Snap-on |
| Explosion-tested version | No |
| 材质 | Steel |
| UNSPSC | 30-21-18-01 |
| Height (inches) | 0.709 inch |
| Certificate of conformity | CFAT_KLBUE CO.pdf |
| eClass 8*1 | 27-14-11-50 |
| ETIM 4*0 | EC000489 |
| ETIM 5*0 | EC000489 |
| Depth (inches) | 1.638 inch |
| Installation advice | Direct mounting, Busbar |
| eClass 7*1 | 27-14-11-50 |
| Cable diameter, max | 15 mm |
| 深度 | 41.6 mm |
| Cable diameter, min | 4 mm |
| Width (inches) | 0.831 inch |
| ETIM 6*0 | EC002020 |
| Mounting dimension - width | 20 mm |
| 身高 | 18 mm |
| eClass 9*0 | 27-14-11-50 |
| eClass 6*2 | 27-14-11-90 |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
