Weidmuller

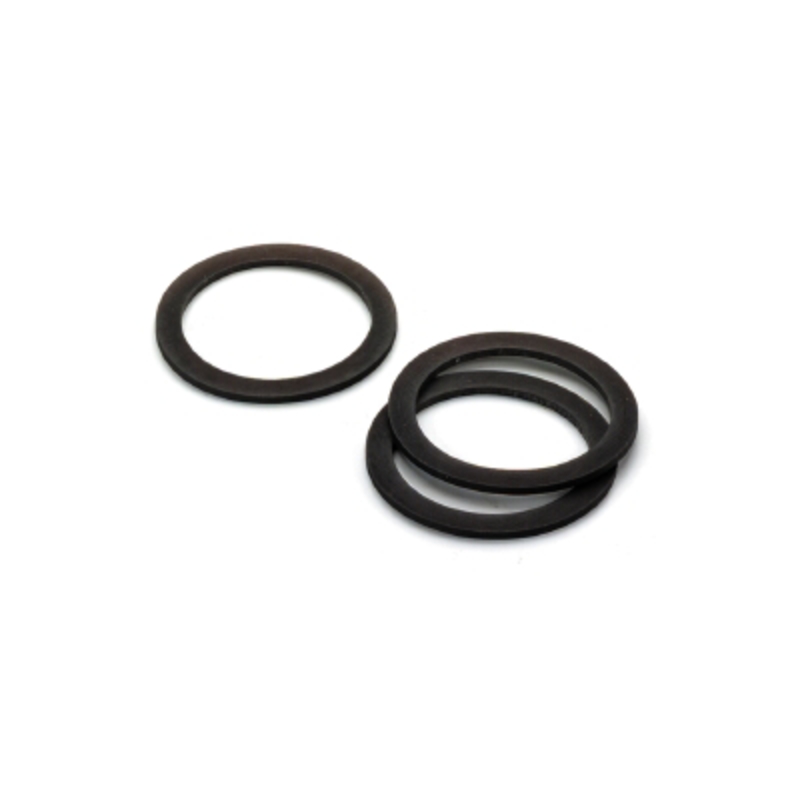

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 标准包装 | 50 |
| 材质 | Neoprene |
| 附件类型 | Sealing Ring |
| 配用/相关产品 | Cable Glands |
| 产品特点 | M16 Thread |
| Pitch of thread | 1.5 mm |
| External thread | M 16 |
| ETIM 3*0 | EC000781 |
| Engineering data | EPLAN |
| Net weight | 0.4 g |
| 厚度 | 1.2 mm |
| 版本 | Accessories, Sealing ring, M 16, Neoprene |
| Diameter of sealing ring | 22 mm |
| GTIN (EAN) | 4008190956028 |
| Inside diameter D2 | 16 mm |
| 类型 | GWDR M16-NP |
| Descriptive text ordering data | Further versions on request |
| UNSPSC | 31-16-18-18 |
| Cable gland | metric |
| eClass 5*1 | 23-07-90-90 |
| eClass 8*1 | 27-14-91-09 |
| ETIM 4*0 | EC000441 |
| ETIM 5*0 | EC000441 |
| eClass 9*0 | 27-14-44-32 |
| eClass 9*1 | 27-14-44-90 |
| eClass 7*1 | 27-14-91-09 |
| Operating temperature range, max | 100 °C |
| ETIM 6*0 | EC000441 |
| OD | 22 mm |
| Operating temperature range, min | -30 °C |
| eClass 6*2 | 27-14-91-09 |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
