weidmuller

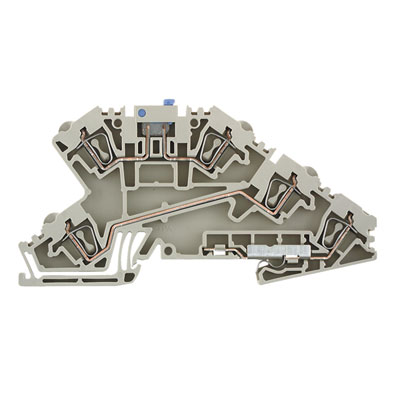

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Modular Terminal Blocks |
| 触点数 | 5 |
| 电路数 | 2 |
| 身体上的取向 | Straight |
| 行数 | 4 |
| 外壳颜色 | Dark Beige |
| 线径规格 | 12-26 AWG |
| 标准包装 | Bulk |
| 位置数 | 5 |
| 楼层数 | 3; 1 Grounded |
| 线规或范围 - mm² | 0.5-4mm² |
| 颜色 | Beige |
| 剥线长度 | 8mm |
| 端接类型 | Push In, Spring |
| 线规或范围 - AWG | 12-26 AWG |
| 终端 - 宽度 | 5.1mm |
| 材料 - 绝缘体 | Thermoplastic, Wemid |
| 电流 - IEC | 20A |
| 电压 - IEC | 400V |
| 电压 - UL | 300V |
| 材料阻燃等级 | UL94 V-0 |
| 其他名称 | ZDL2.5NTLPE |
| RoHS指令 | Lead free / RoHS Compliant |
| Net weight | 15.98 g |
| 宽度 | 5.1 mm |
| Wire connection cross section AWG, max | AWG 12 |
| Volume resistance according to IEC 60947-7-x | 2.66 mΩ |
| Explosion-tested version | No |
| Rated impulse withstand voltage | 4 kV |
| Height (inches) | 3.74 inch |
| Voltage size D (UR) | 300 V |
| Conductor size Field wiring min* (UR) | 26 AWG |
| Connection direction | Inclined / angled |
| Wire connection cross section, solid core, min* rated connection | 0.5 mm² |
| Installation advice | Direct mounting |
| Wire cross section min* (CSA) | 26 AWG |
| 颜色 | Dark Beige |
| 标准 | IEC 60947-7-1 (-7-2) |
| Wire connection cross-section, finely stranded, min | 0.5 mm² |
| Number of connections | 5 |
| PEN function | No |
| N-function | Yes |
| Conductor size Factory wiring max* (UR) | 12 AWG |
| Clamping range, rated connection, max | 4 mm² |
| Wire connection cross section AWG, min | AWG 26 |
| No* of clamping points per level | 2 |
| Pollution severity | 3 |
| Mounting rail | TS 35 |
| UL 94 flammability rating | V-0 |
| Wire connection cross section, finely stranded, max | 4 mm² |
| 版本 | 3-conductor installation terminal, Tension-clamp connection, With PE connection, with busbar connection 10x3, for plug-in cross-connector, One end without connector |
| Current size D (UR) | 10 A |
| PE connection | Yes |
| 材质 | Wemid |
| PE function | Yes |
| eClass 8*1 | 27-14-11-25 |
| Conductor size Factory wiring min* (UR) | 26 AWG |
| eClass 9*0 | 27-14-11-25 |
| eClass 9*1 | 27-14-11-25 |
| eClass 6*2 | 27-14-11-25 |
| End cover plate required | Yes |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max | 2.5 mm² |
| eClass 7*1 | 27-14-11-25 |
| Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min | 0.5 mm² |
| Type of connection | Tension clamp connection |
| ROHS | Conform |
| ETIM 3*0 | EC001329 |
| Current size B (UR) | 15 A |
| GTIN (EAN) | 4008190958954 |
| Voltage size B (UR) | 300 V |
| Type of mounting | Snap-on |
| Current at maximum wires | 20 A |
| 额定电流 | 20 A |
| Open sides | right |
| UNSPSC | 30-21-18-11 |
| eClass 5*1 | 27-14-11-25 |
| Gauge to IEC 60947-1 | A2 |
| ETIM 5*0 | EC001329 |
| Number of potentials | 3 |
| Depth (inches) | 1.89 inch |
| Levels cross-connected internally | No |
| Continuous operating temp, min | -50 °C |
| Voltage size D (CSA) | 300 V |
| Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max | 2.5 mm² |
| Declaration of Conformity | DE_PT1103_20160418_1114_ISSUE01.pdf |
| Continuous operating temp, max | 120 °C |
| Stripping length | 8 mm |
| 身高 | 95 mm |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min | 0.5 mm² |
| Wire connection cross section, solid core max* rated connection | 4 mm² |
| Current size D (CSA) | 10 A |
| ETIM 6*0 | EC001329 |
| Certificate No* (CSA) | 154685-1142891 |
| Number of potentials per tier | 1 |
| Engineering data | EPLAN |
| Number of levels | 3 |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max | 2.5 mm² |
| Rated cross-section | 2.5 mm² |
| Clamping range, rated connection, min | 0.13 mm² |
| Certificate No* (UR) | E60693 |
| ETIM 4*0 | EC001329 |
| Blade size | 0.6 x 3.5 mm |
| 深度 | 48 mm |
| Conductor size Field wiring max* (UR) | 12 AWG |
| Width (inches) | 0.201 inch |
| Wire cross section max* (CSA) | 12 AWG |
| 额定电压 | 400 V |
