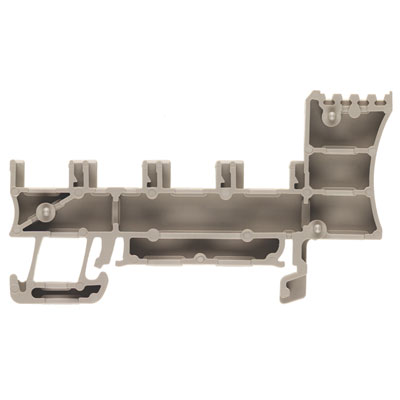

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 颜色 | Beige |
| 配用/相关产品 | Z Series Internal Jumpers |
| 标准包装 | 100 |
| 类型 | Mounting Base, Rail Type |
| 其他名称 | ZPV1.5WEMDB |
| ETIM 3*0 | EC000900 |
| Pollution severity | 3 |
| Mounting rail | TS 35 |
| Engineering data | EPLAN |
| Net weight | 3.33 g |
| 宽度 | 5.1 mm |
| TS 15 offset | 32 mm |
| 版本 | Base element, Potential distributor |
| Current size D (UR) | 10 A |
| Volume resistance according to IEC 60947-7-x | 1.83 mΩ |
| 身高 | 67.8 mm |
| TS 32 offset | 38 mm |
| PE connection | No |
| Rated cross-section | 1.5 mm² |
| Explosion-tested version | No |
| eClass 7*1 | 27-14-11-28 |
| 额定电流 | 17.5 A |
| Open sides | right |
| 材质 | Wemid |
| UNSPSC | 30-21-18-11 |
| Height (inches) | 2.669 inch |
| Voltage size D (UR) | 300 V |
| GTIN (EAN) | 4008190460013 |
| Conductor size Field wiring min* (UR) | 26 AWG |
| Certificate No* (UR) | E60693 |
| Wire cross section max* (CSA) | 14 AWG |
| Wire cross section min* (CSA) | 26 AWG |
| eClass 8*1 | 27-14-11-28 |
| ETIM 4*0 | EC000900 |
| Levels cross-connected internally | No |
| ETIM 5*0 | EC000900 |
| eClass 5*1 | 27-14-11-28 |
| Conductor size Factory wiring min* (UR) | 26 AWG |
| Number of levels | 1 |
| Depth (inches) | 1.51 inch |
| eClass 9*1 | 27-14-11-20 |
| Number of similar terminals | 1 |
| 颜色 | Dark Beige |
| eClass 6*2 | 27-14-11-28 |
| 标准 | IEC 60947-7-1 |
| Continuous operating temp, min | -50 °C |
| 深度 | 38.35 mm |
| End cover plate required | Yes |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max | 1.5 mm² |
| Depth including DIN rail | 38.5 mm |
| Continuous operating temp, max | 120 °C |
| Conductor size Field wiring max* (UR) | 14 AWG |
| Number of connections | 1 |
| 额定电压 | 250 V |
| Width (inches) | 0.201 inch |
| TS 35 offset | 38 mm |
| ETIM 6*0 | EC000897 |
| Conductor size Factory wiring max* (UR) | 14 AWG |
| eClass 9*0 | 27-14-11-28 |
| UL 94 flammability rating | V-0 |
| Connection direction | top |
| Certificate No* (CSA) | 200039-1068678 |
| Type of connection | Miscellaneous |
| Rated impulse withstand voltage | 4 kV |
| ROHS | Conform |
| Type of mounting | Snap-on |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
