weidmuller

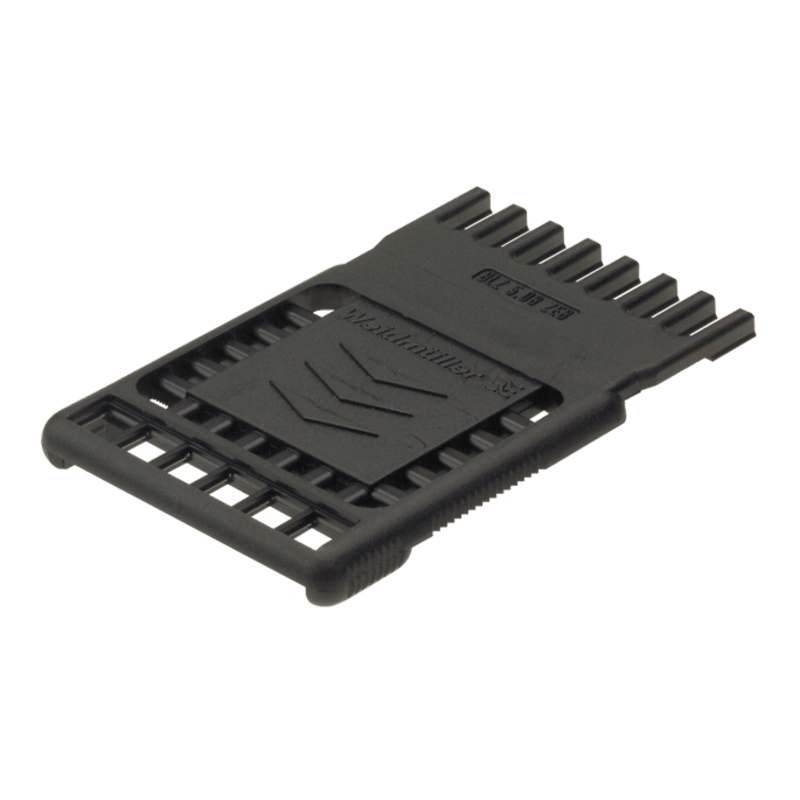

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Strain Relief |
| 家庭 | BL |
| 标准包装 | Bulk |
| 颜色 | Black |
| 位置数 | 4+ |
| 配用/相关产品 | Omnimate BLZ |
| 其他名称 | BLZ 5.08 ZE4 BK |
| RoHS指令 | Lead free / RoHS Compliant |
| ETIM 3*0 | EC001284 |
| Net weight | 1.94 g |
| 版本 | PCB plug-in connector, Accessories, Strain relief, Black, No. of poles: 4 |
| GTIN (EAN) | 4008190401801 |
| Temperature range, installation, max | 100 °C |
| eClass 7*1 | 27-44-92-02 |
| Safety notice | Safety indication |
| UNSPSC | 30-21-18-01 |
| eClass 8*1 | 27-44-92-02 |
| ETIM 5*0 | EC002637 |
| IPC conformity | The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request. |
| eClass 9*0 | 27-44-04-92 |
| Insulating material | PA |
| 颜色 | Black |
| eClass 6*2 | 27-26-92-01 |
| Operating temperature, max | 100 °C |
| Max* relative humidity during storage | 80 % |
| Storage temperature, min | -25 °C |
| tested acc* to standard | IEC 60664-1, IEC 61984 |
| Temperature range, installation, min | -25 °C |
| ETIM 6*0 | EC002637 |
| Operating temperature, min | -50 °C |
| Storage temperature, max | 55 °C |
| Colour chart (similar) | RAL 9011 |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
