weidmuller

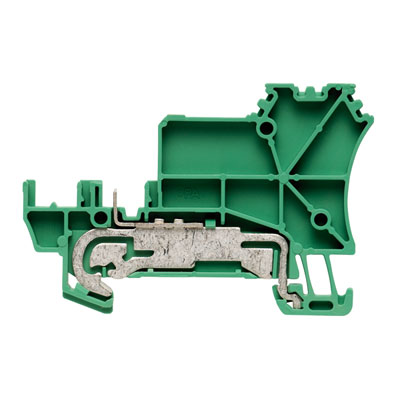

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 颜色 | Green |
| 位置数 | 2 |
| 配用/相关产品 | Z Series Internal Jumpers |
| 标准包装 | 1 |
| 类型 | Mounting Base, Rail Type |
| 其他名称 | ZIA153LPE |
| Net weight | 8.21 g |
| 宽度 | 5.08 mm |
| Wire connection cross section AWG, max | AWG 14 |
| Volume resistance according to IEC 60947-7-x | 1.83 mΩ |
| Explosion-tested version | No |
| Rated impulse withstand voltage | 4 kV |
| Height (inches) | 2.697 inch |
| Voltage size D (UR) | 300 V |
| Conductor size Field wiring min* (UR) | 26 AWG |
| Twin wire-end ferrules, min | 0.5 mm² |
| Connection direction | top |
| Wire connection cross section, solid core, min* rated connection | 0.5 mm² |
| Installation advice | Direct mounting |
| Wire cross section min* (CSA) | 26 AWG |
| 颜色 | Dark Beige |
| 标准 | In accordance with IEC 60947-7-1, IEC 60947-7-2 |
| Wire connection cross-section, finely stranded, min | 0.5 mm² |
| Number of connections | 2 |
| PEN function | No |
| N-function | No |
| Conductor size Factory wiring max* (UR) | 14 AWG |
| Clamping range, rated connection, max | 2.5 mm² |
| Wire connection cross section AWG, min | AWG 26 |
| Twin wire-end ferrules, max | 0.75 mm² |
| No* of clamping points per level | 1 |
| Pollution severity | 3 |
| Mounting rail | TS 35 |
| UL 94 flammability rating | V-0 |
| Wire connection cross section, finely stranded, max | 2.5 mm² |
| 版本 | Base element |
| Current size D (UR) | 10 A |
| Current size B (CSA) | 10 A |
| eClass 9*0 | 27-14-11-28 |
| 材质 | Wemid |
| PE function | Yes |
| eClass 8*1 | 27-14-11-28 |
| Conductor size Factory wiring min* (UR) | 26 AWG |
| PE connection | Yes |
| eClass 9*1 | 27-14-11-28 |
| eClass 6*2 | 27-14-11-28 |
| End cover plate required | Yes |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max | 1.5 mm² |
| eClass 7*1 | 27-14-11-28 |
| Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min | 0.5 mm² |
| Type of connection | Tension clamp connection |
| ROHS | Conform |
| Voltage size B (CSA) | 300 V |
| ETIM 3*0 | EC000900 |
| GTIN (EAN) | 4008190401658 |
| Type of mounting | Snap-on |
| 额定电流 | 17.5 A |
| Open sides | right |
| UNSPSC | 30-21-18-11 |
| eClass 5*1 | 27-14-11-28 |
| Gauge to IEC 60947-1 | A1 |
| ETIM 5*0 | EC000900 |
| Number of potentials | 1 |
| Depth (inches) | 1.791 inch |
| Levels cross-connected internally | No |
| Continuous operating temp, min | -50 °C |
| Voltage size D (CSA) | 300 V |
| Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max | 1.5 mm² |
| Declaration of Conformity | DE_PT1104_20160418_1353_ISSUE01.pdf |
| Continuous operating temp, max | 120 °C |
| TS 35 offset | 32.5 mm |
| Stripping length | 7 mm |
| 身高 | 68.5 mm |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min | 0.5 mm² |
| Wire connection cross section, solid core max* rated connection | 2.5 mm² |
| Current size D (CSA) | 10 A |
| ETIM 6*0 | EC000900 |
| Certificate No* (CSA) | 200039-1068678 |
| Engineering data | EPLAN |
| STEP | 1652000000_22244_ZIA_1.5-3L-PE_STP.stp |
| Number of levels | 1 |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max | 1.5 mm² |
| Rated cross-section | 1.5 mm² |
| Clamping range, rated connection, min | 0.13 mm² |
| Certificate No* (UR) | E60693 |
| ETIM 4*0 | EC000900 |
| Blade size | 0.6 x 3.5 mm |
| 深度 | 45.5 mm |
| Depth including DIN rail | 46 mm |
| Conductor size Field wiring max* (UR) | 14 AWG |
| Width (inches) | 0.2 inch |
| Wire cross section max* (CSA) | 14 AWG |
| 额定电压 | 250 V |
| DXF | 22244_ZIA_1.5-3L-PE_DXF.dxf |
| RESOURCE TYPE | LINK |
|---|---|
