weidmuller

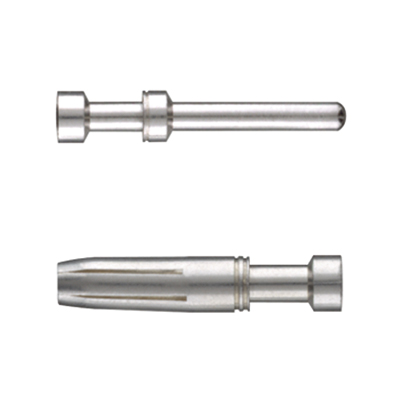

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 连接器类型 | Connector Rectangular |
| 触点类型 | Power |
| 触点材料 | Copper Alloy |
| 触点电镀 | Gold |
| 性别 | SKT |
| 端接方式 | Crimp |
| 标准包装 | Bag |
| 线规 | 14 AWG |
| 接触端子 | Crimp |
| 触点表面涂层 | Gold |
| 封装 | Bulk |
| 针脚或插座 | Socket |
| Contact Finish Thickness | 31.5µin (0.80µm) |
| 类型 | Machined |
| 其他名称 | HDC-C-HE-BM 2.5AU 100/PK |
| RoHS指令 | Lead free / RoHS Compliant |
| Version insert | HE, HEE, HQ, MixMate, CM HE, CM BUS (CSB) |
| ETIM 3*0 | EC000796 |
| Net weight | 1.64 g |
| Cross-section for connected wire | 2.5 mm² |
| 版本 | Heavy Duty Connectors, Crimp contact, HE, HEE, HQ, MixMate, CM HE, CM BUS (CSB), Female, Conductor cross-section, max.: 2.5, turned, Copper alloy |
| GTIN (EAN) | 4008190400170 |
| Surface finish | gold |
| eClass 7*1 | 27-44-02-04 |
| 材质 | Copper alloy |
| UNSPSC | 30-21-18-01 |
| eClass 5*1 | 27-14-34-19 |
| eClass 8*1 | 27-44-02-04 |
| ETIM 4*0 | EC000796 |
| Volume resistance | ≤ 2mΩ |
| Conductor cross-section, max | 2.5 mm² |
| ETIM 5*0 | EC000796 |
| eClass 9*0 | 27-44-02-04 |
| eClass 9*1 | 27-44-02-04 |
| eClass 6*2 | 27-26-12-02 |
| 直径 | 4.5 mm |
| Contact diameter, male Ø | 2.5 mm |
| Descriptive text accessories | For further accessories, see chapter J - tools, see chapter K |
| ETIM 6*0 | EC000796 |
| Stripping length, rated connection | 7.5 mm |
| Surface layer thickness, min | 0.75 µm |
| Production methods | turned |
| 系列 | HE |
| Surface layer thickness, max | 1.25 µm |
| Type of connection | Crimp connection |
| ROHS | Conform |
