weidmuller

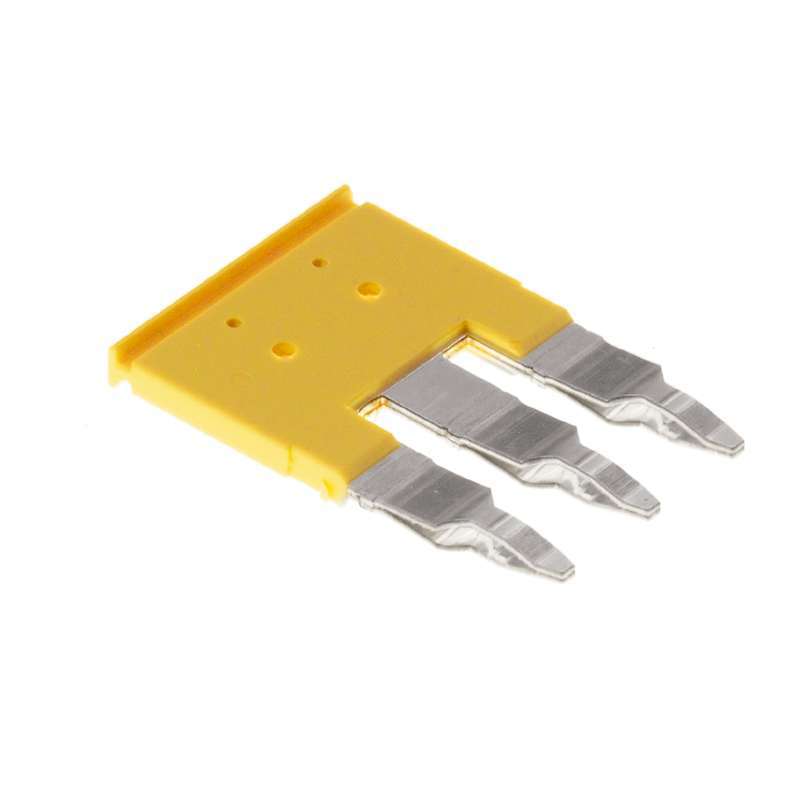

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Pluggable Jumper |
| 间距 | 8.1 mm |
| 触点数 | 3 |
| 行数 | 1 |
| 外壳颜色 | Yellow |
| 标准包装 | Bag |
| 风格 | Flat Pins |
| 位置数 | 3 |
| 配用/相关产品 | I and Z Series |
| 其他名称 | ZQV6/3POLE |
| RoHS指令 | Lead free / RoHS Compliant |
| 应用 | ZDU6 |
| Multiplicity | 60 |
| Gross weight | 4.42 g |
| Connector accessories type | comb bridge |
| Collective package [pcs] | 60 |
| spg | 60 |
| ETIM 3*0 | EC000489 |
| Mounting rail | none |
| Engineering data | EPLAN, Zuken E3.S |
| Net weight | 4.05 g |
| eClass 9*1 | 27-14-11-40 |
| Pitch in mm (P) | 8.1 mm |
| 宽度 | 3.1 mm |
| 版本 | For the terminals |
| GTIN (EAN) | 4008190200435 |
| Type of fixing | Plugged |
| Explosion-tested version | No |
| 额定电流 | 41 A |
| 材质 | Wemid |
| UNSPSC | 30-21-18-01 |
| Height (inches) | 0.882 inch |
| eClass 5*1 | 27-14-11-40 |
| eClass 8*1 | 27-14-11-40 |
| ETIM 4*0 | EC000489 |
| ETIM 5*0 | EC000489 |
| Depth (inches) | 1.337 inch |
| Installation advice | Direct mounting |
| 颜色 | Yellow |
| eClass 7*1 | 27-14-11-40 |
| Continuous operating temp, min | -50 °C |
| 深度 | 33.96 mm |
| Continuous operating temp, max | 120 °C |
| UL 94 flammability rating | V-0 |
| Width (inches) | 0.122 inch |
| ETIM 6*0 | EC000489 |
| 身高 | 22.4 mm |
| eClass 9*0 | 27-14-11-40 |
| eClass 6*2 | 27-14-11-40 |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
