weidmuller

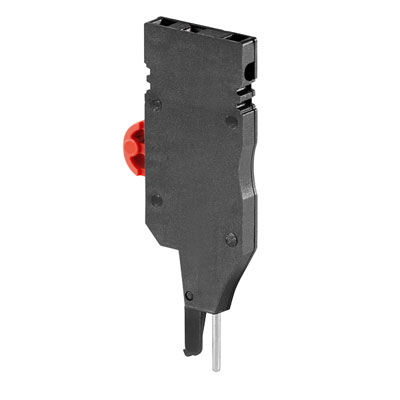

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Test Adapter |
| 性别 | PL |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| 颜色 | Black |
| 配用/相关产品 | 6.1mm Wide Terminal Blocks |
| RoHS指令 | Lead free / RoHS Compliant |
| 附件类型 | Test Adapter |
| 适用于 | Terminal Block |
| 系列 | ZTA |
| ETIM 3*0 | EC002255 |
| Mounting rail | none |
| Engineering data | EPLAN |
| Net weight | 8.56 g |
| eClass 9*1 | 27-14-11-48 |
| Pitch in mm (P) | 6 mm |
| 宽度 | 6.1 mm |
| 版本 | For the terminals |
| Height with TS 35 | 103.5 mm |
| eClass 9*0 | 27-14-11-48 |
| Installation advice | Direct mounting |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max | 1.5 mm |
| Rated cross-section | 1.5 mm² |
| Wire connection cross section, solid core, min* rated connection | 0.5 mm |
| eClass 7*1 | 27-14-92-14 |
| 额定电流 | 9 A |
| With snap-in pegs | No |
| 材质 | Polyamide 66 |
| UNSPSC | 30-21-18-01 |
| Height (inches) | 1.24 inch |
| GTIN (EAN) | 4008190466220 |
| eClass 8*1 | 27-14-11-48 |
| ETIM 4*0 | EC002255 |
| ETIM 5*0 | EC002255 |
| Number of levels | 1 |
| Depth (inches) | 2.878 inch |
| Clamping range, rated connection, min | 0.5 mm² |
| 颜色 | Black |
| eClass 6*2 | 27-14-92-14 |
| Continuous operating temp, min | -50 °C |
| 深度 | 73.1 mm |
| Width (inches) | 0.24 inch |
| Wire connection cross-section, finely stranded, min | 0.5 mm |
| Continuous operating temp, max | 100 °C |
| Number of connections | 1 |
| Tightening torque, min | 0.3 Nm |
| Wire connection cross section, finely stranded, max | 1.5 mm |
| ETIM 6*0 | EC002555 |
| Stripping length | 6 mm |
| Tightening torque, max | 0.3 Nm |
| 身高 | 31.5 mm |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min | 0.5 mm |
| Wire connection cross section, solid core max* rated connection | 1.5 mm |
| UL 94 flammability rating | V-2 |
| 额定电压 | 250 V |
| Clamping range, rated connection, max | 1.5 mm² |
| Type of connection | Plug-in connection |
| ROHS | Conform |
| No* of clamping points per level | 1 |
