weidmuller

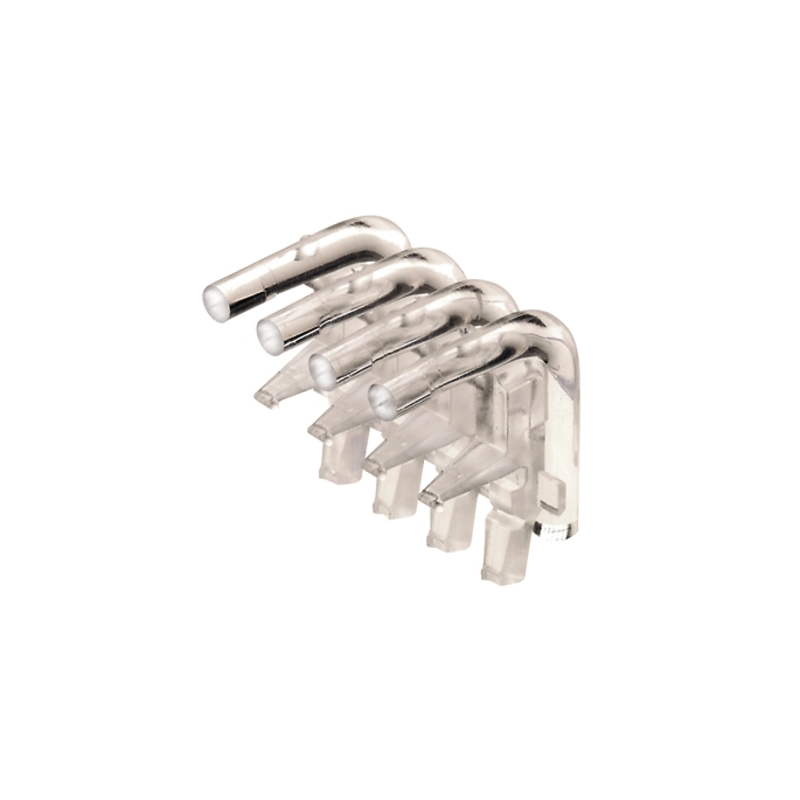

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Light Guide |
| 家庭 | SL |
| 标准包装 | Bulk |
| 透镜样式/尺寸 | Round with Flat Top, 2.5mm |
| 安装类型 | Board Mount, Press Fit, Right Angle |
| 颜色 | Clear |
| 配置 | Single |
| 其他名称 | SLFLA9.0/1 |
| RoHS指令 | Lead free / RoHS Compliant |
| ETIM 3*0 | EC001284 |
| Net weight | 0.47 g |
| 版本 | PCB plug-in connector, Accessories, Flood-light display, Transparent, No. of poles: 1 |
| GTIN (EAN) | 4008190031909 |
| Storage temperature, max | 55 °C |
| Temperature range, installation, max | 100 °C |
| Safety notice | Safety indication |
| UNSPSC | 30-21-18-01 |
| eClass 8*1 | 27-44-92-02 |
| IPC conformity | The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request. |
| eClass 9*0 | 27-44-04-92 |
| Insulating material | Polymethyl methacrylate |
| 颜色 | Transparent |
| Operating temperature, max | 100 °C |
| Max* relative humidity during storage | 80 % |
| Storage temperature, min | -25 °C |
| tested acc* to standard | IEC 60664-1, IEC 61984 |
| Temperature range, installation, min | -25 °C |
| eClass 7*1 | 27-44-92-02 |
| Operating temperature, min | -50 °C |
| eClass 6*2 | 27-26-92-01 |
| Colour chart (similar) | Not specified |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
