weidmuller

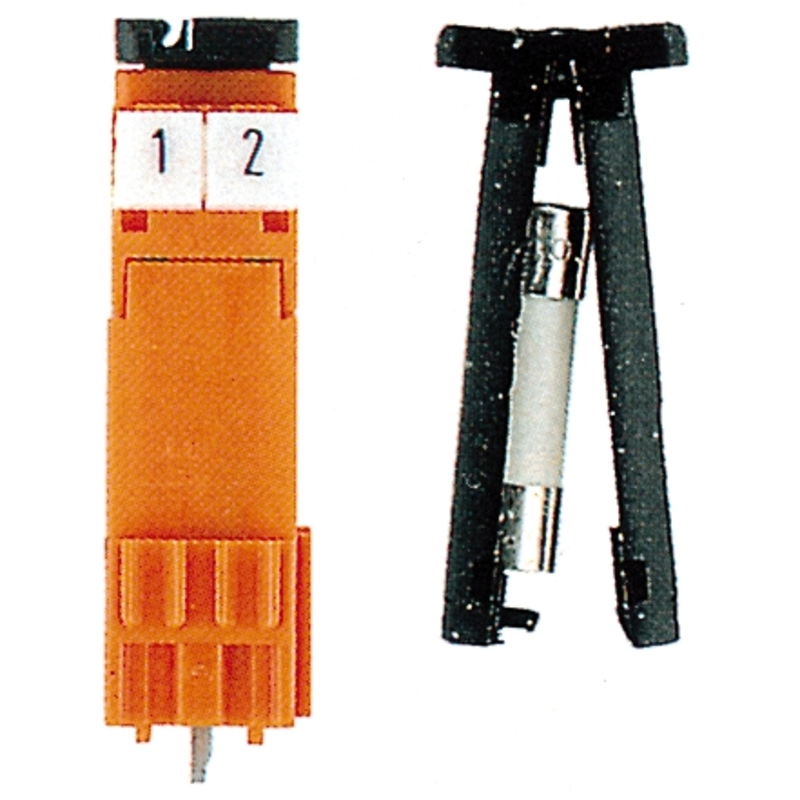

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Fuse Element |
| 家庭 | LP |
| 标准包装 | Bulk |
| 配用/相关产品 | LP Series |
| 其他名称 | LPA/SI OR |
| RoHS指令 | Lead free / RoHS Compliant |
| Temperature range, installation, max | 100 °C |
| Solder eyelet hole diameter (D) | 1.3 mm |
| Touch-safe protection acc* to DIN VDE 0470 | IP 20 |
| ETIM 3*0 | EC001284 |
| Number of solder pins per pole | 2 |
| Engineering data | EPLAN |
| Net weight | 5.68 g |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| 行数 | 1 |
| L1 in inches | 0.4 inch |
| GTIN (EAN) | 4008190095536 |
| Max* relative humidity during storage | 80 % |
| CTI | ≥ 600 |
| Contact material | Cu-Leg |
| Rated current, min* no* of poles (Ta = 20°C) | 6.3 A |
| Insulating material group | I |
| Temperature range, installation, min | -25 °C |
| UNSPSC | 30-21-18-01 |
| Pitch in mm (P) | 10.16 mm |
| Pitch in inches (P) | 0.4 inch |
| Certificate No* (UR) | E60693 |
| Contact surface | tinned |
| ETIM 4*0 | EC002643 |
| Volume resistance | 2.60 mΩ |
| Rated voltage (use group D) | 300 V |
| ETIM 5*0 | EC002643 |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| IPC conformity | The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request. |
| 版本 | PCB terminal, Accessories, Fuse cartridge, Orange, No. of poles: 1 |
| Max* adjacent poles per row | 12 |
| eClass 9*0 | 27-44-04-92 |
| Insulating material | PA |
| 颜色 | Orange |
| eClass 6*2 | 27-26-92-01 |
| Solder pin length (l) | 3.2 mm |
| Operating temperature, max | 100 °C |
| Rated current (use group D) | 10 A |
| Mounting onto the PCB | THT solder connection |
| Storage temperature, min | -25 °C |
| eClass 8*1 | 27-44-92-02 |
| tested acc* to standard | IEC 60664-1, IEC 61984 |
| Rated voltage for surge voltage class / pollution degree II/2 | 500 V |
| Product data | IEC: 500 V / 6.3 AUL: |
| eClass 7*1 | 27-44-92-02 |
| ETIM 6*0 | EC002643 |
| Fitted by customer | Yes |
| Operating temperature, min | -50 °C |
| Rated voltage for surge voltage class / pollution degree III/2 | 250 V |
| UL 94 flammability rating | V-2 |
| Storage temperature, max | 55 °C |
| Certificate No* (CSA) | 12400-266 |
| Colour chart (similar) | RAL 2000 |
| No* of poles | 1 |
| ROHS | Conform |
