weidmuller

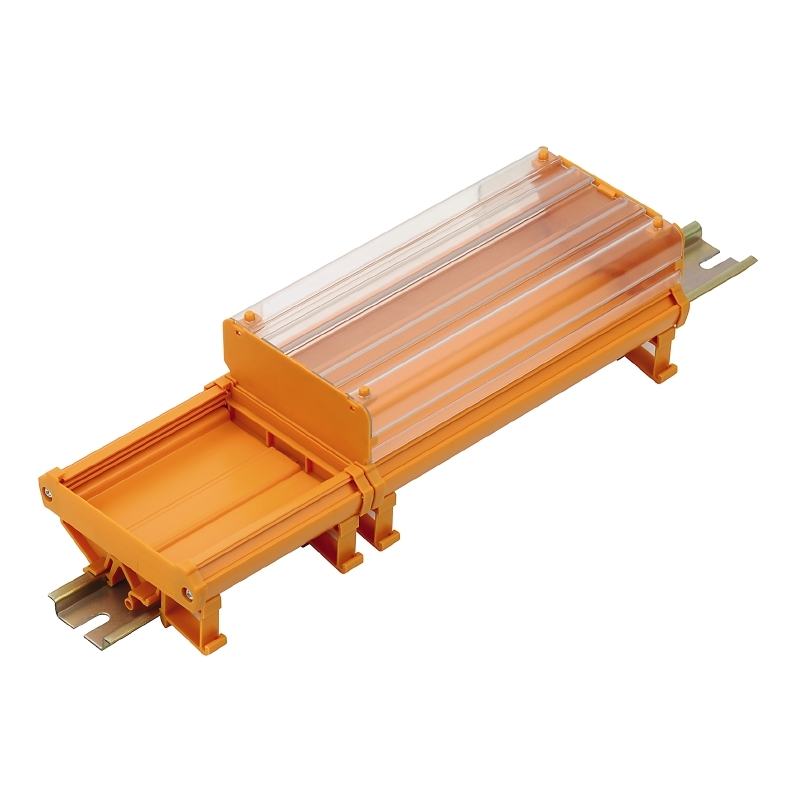

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | End Plate |
| 家庭 | RS |
| 标准包装 | Bag |
| 颜色 | Orange |
| 材质 | Plastic, Polyamide |
| 尺寸/尺寸 | 3.402" L x 0.669" W x 0.665" H (86.40mm x 17.00mm x 16.90mm) |
| 配用/相关产品 | RS Housing System |
| RoHS指令 | Lead free / RoHS Compliant |
| Temperature range, installation, max | 100 °C |
| Contact to terminal rail | No |
| ETIM 3*0 | EC000886 |
| UL 94 flammability rating | V-2 |
| Operating temperature, max | 100 °C |
| 宽度 | 17 mm |
| 版本 | End plate |
| GTIN (EAN) | 4008190094898 |
| Max* relative humidity during storage | 80 % |
| Descriptive text technical data | 3 heights are available for the cover profile and the end plates:TS mounting without cover: TS 32 = 45 mm, TS35x7.5 = 40.5 mmTS mounting with low cover: TS 32 = 72 mm, TS 35x7.5 = 67.5 mmTS mounting with high cover: TS 32 = 91 mm, TS 35x7.5 = 86.5 mmDirect mounting, without/low/high cover: 17 / 44 / 63 mmDimensions of the PCB:Thickness: 1.6 (±0.2) mm, width: 67.8 (+0.2) mmDimension of RS section = PCB length - 4.5 mmDimension ADP section = PCB length - 2 mmExample:PCB length 160 mm, RS section = 155.5 mm, ADP section = 158 mm |
| Length (inches) | 3.402 inch |
| eClass 7*1 | 27-14-11-33 |
| UNSPSC | 30-21-18-27 |
| Height (inches) | 0.665 inch |
| CTI | ≥ 600 |
| eClass 5*1 | 27-14-11-33 |
| eClass 8*1 | 27-14-11-33 |
| ETIM 5*0 | EC000886 |
| eClass 9*0 | 27-14-11-33 |
| Insulating material | PA 66 |
| 颜色 | Orange |
| eClass 6*2 | 27-14-11-33 |
| Net weight | 2.9 g |
| 长度 | 86.4 mm |
| Width (inches) | 0.669 inch |
| Storage temperature, min | -25 °C |
| Cross-connection | No |
| Protection degree | IP20 |
| Temperature range, installation, min | -25 °C |
| ETIM 6*0 | EC000886 |
| 身高 | 16.9 mm |
| Operating temperature, min | -50 °C |
| Storage temperature, max | 85 °C |
| Colour chart (similar) | RAL 2000 |
| Encapsulation option | No |
| ROHS | Conform |
