Weidmuller

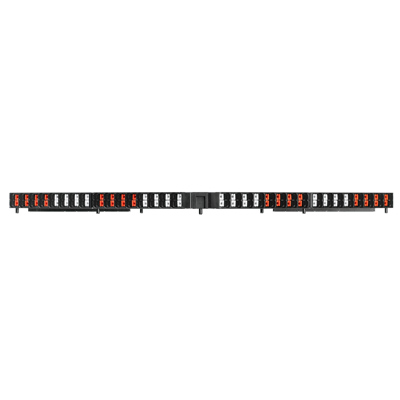

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 线规或范围 - AWG | 16 AWG |
| 楼层数 | 16 |
| 安装类型 | DIN Rail |
| 高度（最大） | 4.173" (106.00mm) |
| 剥线长度 | 10mm |
| 标准包装 | 20 |
| 端接类型 | Push In, Spring |
| 电流 - IEC | 6A |
| 终端 - 宽度 | 9.2mm |
| 材料 - 绝缘体 | Polycarbonate (PC) |
| 线规或范围 - mm² | 1.5mm² |
| 电压 - IEC | 250V |
| 长度 | 8.858" (225.00mm) |
| 外壳颜色 | Black |
| 电压 - UL | 300V |
| 材料阻燃等级 | UL94 V-0 |
| 工作温度 | -25°C ~ 70°C |
| 类型 | Signal Distribution |
| 位置数 | 64 |
| 电流 - UL | 1A |
| RoHS指令 | Lead free / RoHS Compliant |
| Mounting rail size | TS35x7.5 |
| Electrical mounting | screw terminal |
| Flammability rating | UL94V-0 |
| Number of ways | 16 |
| Max cable section | 1.5mm2 |
| 额定电流 | 5A |
| 额定电压 | 250V AC |
| Number of terminals | 64 |
| Body material | polycarbonate |
| Operating temperature | -25...70°C |
| Body dimensions | 9.2 x 255 x 106mm |
| Lever colour | white/red |
| 颜色 | black |
| Multiplicity | 1 |
| Gross weight | 0.14 kg |
| Splice terminal type | rail |
| Collective package [pcs] | 20 |
| spg | 20 |
| Voltage size B (cURus) | 300 V |
| Type of connection | PUSH IN |
| Pollution severity | 3 |
| Mounting rail | TS 35 x 7.5 |
| Engineering data | EPLAN |
| Net weight | 121.3 g |
| eClass 9*1 | 27-14-11-20 |
| eClass 7*1 | 27-14-11-20 |
| 宽度 | 9.2 mm |
| 版本 | PUSH IN connection, One end without connector |
| Certificate No* (cURus) | E60693 |
| Wire connection cross section AWG, max | AWG 16 |
| Voltage size B (CSA) | 300 V |
| GTIN (EAN) | 4032248966202 |
| Current size B (CSA) | 1 A |
| eClass 9*0 | 27-14-11-24 |
| Volume resistance according to IEC 60947-7-x | 29.28 mΩ |
| Wire connection cross section, stranded, rated connection, max | 1.5 mm² |
| Temperature range, installation, max | 40 °C |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max | 1.5 mm² |
| Type of mounting | Snap-on |
| Rated cross-section | 1.5 mm² |
| PE connection | No |
| Current at maximum wires | 11 A |
| Wire connection cross section AWG, min | AWG 24 |
| Rated impulse withstand voltage | 4 kV |
| 材质 | Polycarbonate |
| Voltage size D (cURus) | 300 V |
| Height (inches) | 8.858 inch |
| Material of operational elements | PBT |
| Current size D (cURus) | 1 A |
| Wire connection cross section, stranded, rated connection, min | 0.5 mm² |
| Wire connection cross section, finely stranded, max | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max | 1.5 mm² |
| Levels cross-connected internally | No |
| ETIM 5*0 | EC000897 |
| Blade size | 0.6 x 3.5 mm |
| Colour of operational elements | white-red |
| Number of levels | 16 |
| Surge voltage category | III |
| Depth (inches) | 4.173 inch |
| Clamping range, rated connection, min | 0.13 mm² |
| Wire cross section min* (CSA) | 26 AWG |
| Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min | 0.5 mm² |
| Wire cross section max* (CSA) | 16 AWG |
| Wire cross section max* (cURus) | 16 AWG |
| 标准 | IEC 60947-7-1 |
| Continuous operating temp, min | -50 °C |
| Voltage size D (CSA) | 300 V |
| 深度 | 106 mm |
| Width (inches) | 0.362 inch |
| Wire cross section min* (cURus) | 26 AWG |
| End cover plate required | Yes |
| Storage temperature | -25 °C...70 °C |
| Clamping range, rated connection, max | 1.5 mm² |
| Wire connection cross-section, finely stranded, min | 0.5 mm² |
| Declaration of Conformity | DE_PT1441_20160418_312_ISSUE01.pdf |
| Wire connection cross section, solid core, min* rated connection | 0.5 mm² |
| eClass 8*1 | 27-14-11-24 |
| Continuous operating temp, max | 130 °C |
| Number of connections | 64 |
| Temperature range, installation, min | -10 °C |
| UL 94 flammability rating | V-0 |
| ETIM 6*0 | EC000897 |
| Stripping length | 10 mm |
| 身高 | 225 mm |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min | 0.5 mm² |
| Wire connection cross section, solid core max* rated connection | 1.5 mm² |
| Current size B (cURus) | 1 A |
| Current size D (CSA) | 1 A |
| Connection direction | Inclined / angled |
| Certificate No* (CSA) | 200039-2406089 |
| Number of potentials per tier | 1 |
| ROHS | Conform |
| No* of clamping points per level | 4 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
