Weidmuller

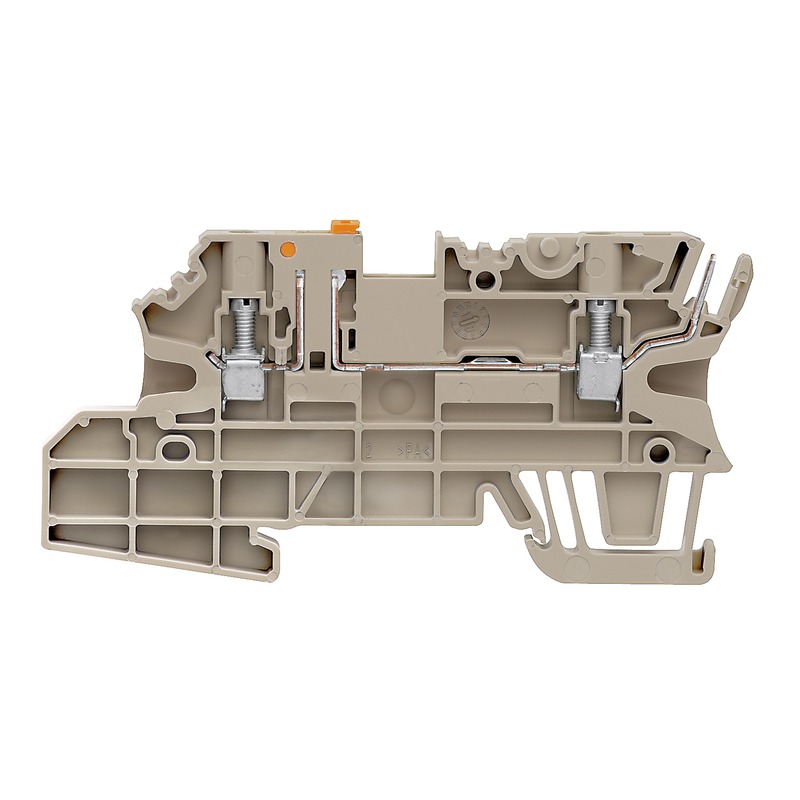

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 线规或范围 - AWG | 12 AWG |
| 楼层数 | 1 |
| 安装类型 | DIN Rail |
| 高度（最大） | 1.772" (45.00mm) |
| 剥线长度 | 10mm |
| 标准包装 | 1 |
| 端接类型 | Plug Receptacles, Screw |
| 电流 - IEC | 20A |
| 终端 - 宽度 | 5.08mm |
| 材料 - 绝缘体 | Thermoplastic, Wemid |
| 线规或范围 - mm² | 0.5-4mm² |
| 电压 - IEC | 250V |
| 长度 | 3.543" (90.00mm) |
| 外壳颜色 | Beige |
| 电压 - UL | 300V |
| 材料阻燃等级 | UL94 V-0 |
| 工作温度 | -50°C ~ 120°C |
| 类型 | Plug Connection |
| 位置数 | 3 |
| 产品特点 | Disconnect Point |
| 电流 - UL | 19A |
| RoHS指令 | Lead free / RoHS Compliant |
| Net weight | 11.63 g |
| 宽度 | 5.08 mm |
| Wire connection cross section AWG, max | AWG 12 |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Voltage size D (cURus) | 300 V |
| Height (inches) | 3.543 inch |
| Connection direction | on side |
| Wire connection cross section, solid core, min* rated connection | 0.5 mm² |
| Clamping range, rated connection, min | 0.5 mm² |
| Wire cross section min* (CSA) | 26 AWG |
| 颜色 | Dark Beige |
| 标准 | IEC 61984, In accordance with IEC 60947-7-1 |
| Wire connection cross section, stranded, rated connection, min | 1.5 mm² |
| Wire connection cross-section, finely stranded, min | 0.5 mm² |
| Number of connections | 3 |
| Tightening torque, min | 0.5 Nm |
| Conductor size Factory wiring min* (cURus) | 26 AWG |
| Tightening torque, max | 0.6 Nm |
| Clamping range, rated connection, max | 4 mm² |
| Wire connection cross section AWG, min | AWG 26 |
| No* of clamping points per level | 3 |
| Pollution severity | 3 |
| Mounting rail | TS 35 |
| UL 94 flammability rating | V-0 |
| Wire connection cross section, finely stranded, max | 4 mm² |
| 版本 | 2 screw connections - 1 plug-in connection, Disconnection element, for plug-in cross-connector, One end without connector |
| Current size B (CSA) | 19 A |
| 材质 | Wemid |
| eClass 8*1 | 27-14-11-26 |
| eClass 9*0 | 27-14-11-26 |
| eClass 9*1 | 27-14-11-26 |
| eClass 6*2 | 27-14-11-26 |
| End cover plate required | Yes |
| eClass 7*1 | 27-14-11-26 |
| Clamping screw | M 3 |
| Current size B (cURus) | 19 A |
| Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min | 0.5 mm² |
| Type of connection | Screw connection |
| With snap-in pegs | No |
| ROHS | Conform |
| Voltage size B (CSA) | 300 V |
| ETIM 3*0 | EC000902 |
| Certificate No* (cURus) | E60693 |
| GTIN (EAN) | 4032248926213 |
| Type of mounting | Snap-on |
| Connection type, additional connection | Plug-in connection |
| Current at maximum wires | 20 A |
| 额定电流 | 20 A |
| Open sides | right |
| Wire cross section max* (CSA) | 12 AWG |
| Gauge to IEC 60947-1 | A3 |
| ETIM 5*0 | EC000902 |
| Number of levels | 1 |
| Depth (inches) | 1.752 inch |
| Wire cross section max* (cURus) | 12 AWG |
| Continuous operating temp, min | -50 °C |
| Voltage size D (CSA) | 300 V |
| Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max | 2.5 mm² |
| Wire cross section min* (cURus) | 26 AWG |
| Declaration of Conformity | DE_PT1032_20160418_891_ISSUE01.pdf |
| Continuous operating temp, max | 120 °C |
| Stripping length | 10 mm |
| 身高 | 90 mm |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min | 0.5 mm² |
| Conductor size Factory wiring max* (cURus) | 12 AWG |
| Current size D (CSA) | 10 A |
| Type of connection 2 | Plug-in connection |
| Certificate No* (CSA) | 200039-1057876 |
| Engineering data | EPLAN |
| Wire connection cross section, solid core max* rated connection | 4 mm² |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max | 2.5 mm² |
| Type of fixing | Snap-on |
| Rated cross-section | 2.5 mm² |
| Snap-on | No |
| Wire connection cross section, stranded, rated connection, max | 4 mm² |
| Current size D (cURus) | 10 A |
| ETIM 4*0 | EC000902 |
| Conductor size Field wiring min* (cURus) | 26 AWG |
| Blade size | 0.6 x 3.5 mm |
| Voltage size B (cURus) | 300 V |
| 深度 | 44.5 mm |
| Depth including DIN rail | 45 mm |
| Conductor size Field wiring max* (cURus) | 12 AWG |
| Width (inches) | 0.2 inch |
| ETIM 6*0 | EC000902 |
| Surge voltage category | III |
| 额定电压 | 250 V |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
