Weidmuller

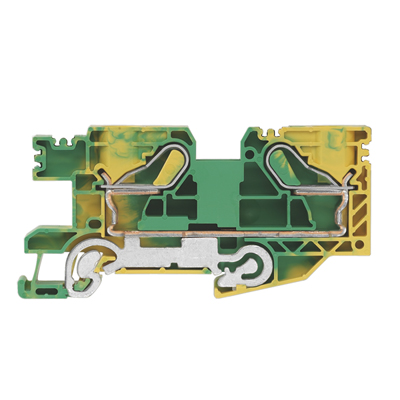

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 楼层数 | 1 |
| 线规或范围 - mm² | 2.5-16mm² |
| 颜色 | Green, Yellow |
| 剥线长度 | 18mm |
| 标准包装 | 1 |
| 端接类型 | Push In, Spring |
| 位置数 | 2 |
| 材料 - 绝缘体 | Thermoplastic, Wemid |
| 材料阻燃等级 | UL94 V-0 |
| 类型 | Ground, Earth |
| 终端 - 宽度 | 12.1mm |
| RoHS指令 | Lead free / RoHS Compliant |
| PEN function | Yes |
| 材质 | Wemid |
| Type of connection | PUSH IN |
| ETIM 3*0 | EC000901 |
| Pollution severity | 3 |
| Mounting rail | TS 35 |
| Engineering data | EPLAN |
| Net weight | 50.14 g |
| eClass 9*1 | 27-14-11-41 |
| 宽度 | 12.1 mm |
| Number of potentials | 1 |
| Width (inches) | 0.476 inch |
| GTIN (EAN) | 4050118027174 |
| eClass 9*0 | 27-14-11-41 |
| Volume resistance according to IEC 60947-7-x | 0.42 mΩ |
| eClass 7*1 | 27-14-03-05 |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max | 16 mm² |
| PE connection | Yes |
| Rated impulse withstand voltage to adjacent terminal | 8 kV |
| Rated cross-section | 16 mm² |
| Explosion-tested version | Yes |
| N-function | No |
| 额定电流 | 76 A |
| Open sides | right |
| Installation advice | Direct mounting |
| Height (inches) | 3.799 inch |
| PE function | Yes |
| Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max | 10 mm² |
| ETIM 4*0 | EC000491 |
| Levels cross-connected internally | No |
| ETIM 5*0 | EC000491 |
| Blade size | 1.0 x 5.5 mm |
| Number of levels | 1 |
| Depth (inches) | 1.87 inch |
| Clamping range, rated connection, min | 2.5 mm² |
| 颜色 | green / yellow |
| Connection direction | top |
| 标准 | IEC 60947-7-2 |
| Continuous operating temp, min | -50 °C |
| 深度 | 47.5 mm |
| Finely stranded, max* (rated connection) | 16 mm² |
| End cover plate required | Yes |
| Type of mounting | Snap-on |
| Rated short-time current | 1920 A (16 mm²) |
| Wire connection cross-section, finely stranded, min | 2.5 mm² |
| Declaration of Conformity | DE_PT1702_20160415_075_ISSUE01.pdf |
| Wire connection cross section, solid core, min* rated connection | 2.5 mm² |
| Depth including DIN rail | 48 mm |
| Continuous operating temp, max | 120 °C |
| Number of connections | 2 |
| Rated voltage to adjoining terminal | 800 V |
| Gauge to IEC 60947-1 | B6 |
| Wire connection cross section, finely stranded, max | 16 mm² |
| ETIM 6*0 | EC000901 |
| Stripping length | 18 mm |
| eClass 8*1 | 27-14-11-41 |
| 身高 | 96.5 mm |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min | 2.5 mm² |
| 版本 | PUSH IN connection, With PE connection, for plug-in cross-connector, One end without connector |
| eClass 6*2 | 27-14-03-05 |
| UL 94 flammability rating | V-0 |
| Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min | 2.5 mm² |
| Clamping range, rated connection, max | 16 mm² |
| Number of potentials per tier | 1 |
| Wire connection cross section, solid core max* rated connection | 16 mm² |
| ROHS | Conform |
| No* of clamping points per level | 2 |
| RESOURCE TYPE | LINK |
|---|---|
