Weidmuller

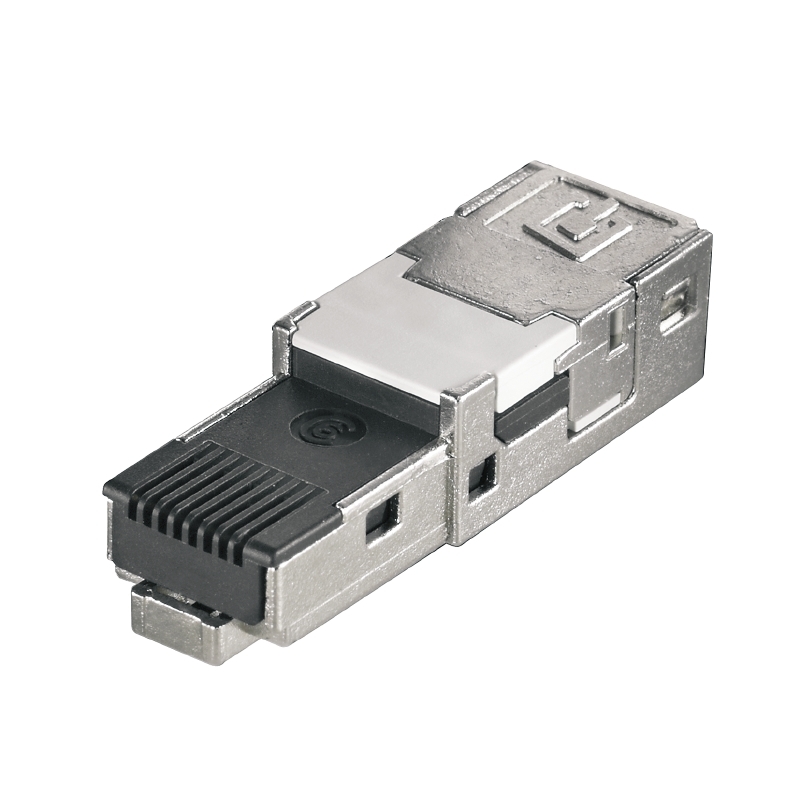

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 评分 | Cat6a |
| 额定电流 | 1A |
| 位置/触点数 | 8p8c (RJ45, Ethernet) |
| 颜色 | Black |
| 电缆类型 | Round Cable, Solid or Stranded Wires |
| 封装 | Bulk |
| 触点表面涂层 | Gold |
| 线规 | 22-26 AWG |
| 防护等级 | IP20 |
| 标准包装 | 10 |
| 端子 | IDC |
| 屏蔽 | Shielded |
| 其他名称 | IE-PI-RJ45-FH-P |
| RoHS指令 | Lead free / RoHS Compliant |
| Dielectric strength, contact / shield | ≥ 1500 V DC |
| Wiring | PROFINET |
| Net weight | 22.8 g |
| Housing main material | Zinc diecast |
| 版本 | RJ45 insert, Plug insert RJ45, no tools required, PROFINET |
| GTIN (EAN) | 4032248912131 |
| 类型 | IE-PI-RJ45-FH-P |
| Generic communication cable facilities | ANSI / TIA / EIA-568-B.2-10, DIN EN 61918 Draft 02.2007, EN 50173-1:2007, ISO / IEC 11801:2002, ISO / IEC 24702:2006 |
| 接触电阻 | ≤ 20 mΩ |
| Conductor connection cross-section, extremely flexible | , Approval of the cable by Weidmüller necessary |
| Current-carrying capacity at 50 °C | 1 A |
| eClass 9*0 | 19-17-01-25 |
| Connection diameter, solid | 0.4...0.64 mm |
| Conductor connection cross-section, solid (AWG) | AWG 24...AWG 22 |
| Operating temperature | -40 °C...70 °C |
| Conductor connection cross-section, flexible (AWG) | AWG 26...AWG 22 |
| Conductor connection cross-section, extremely flexible (AWG) | , Approval of the cable by Weidmüller necessary |
| PoE / PoE+ | conforming to IEEE 802.3at |
| Insulation resistance | 500 MΩ |
| Contact surface | Gold over nickel, Au ≥ 0.8 µm |
| ETIM 4*0 | EC001264 |
| 颜色 | Miscellaneous |
| ETIM 5*0 | EC001264 |
| 连接1 | RJ45 |
| 连接2 | IDC |
| eClass 9*1 | 27-44-09-90 |
| Certificate no* (cULus) | E316369 |
| eClass 7*1 | 27-25-05-04 |
| Connector standard | IEC 60603-7-51 |
| Insulation cross-section, max | 1.6 mm |
| UL standard for communication accessories | UL 1863 |
| IP protection classes | IEC 60529 |
| UL Approval | DUXR.E316369.pdf |
| Description of article | Plug insert RJ45, no tools required |
| Protection degree | IP67 with housing |
| Insulation cross-section, min | 0.85 mm |
| Ability to reconnect | ≥ 10 cycles (for the same or larger cross-section) |
| eClass 8*1 | 19-17-01-25 |
| Dielectric strength, contact / contact | ≥ 1000 V DC |
| ETIM 6*0 | EC001121 |
| CC-Link certification | CC-Link IE-PI-RJ45-FH.PDF |
| Plugging cycles | 750 |
| eClass 6*2 | 27-25-05-04 |
| 速度 | 100 MBit/s |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
