weidmuller

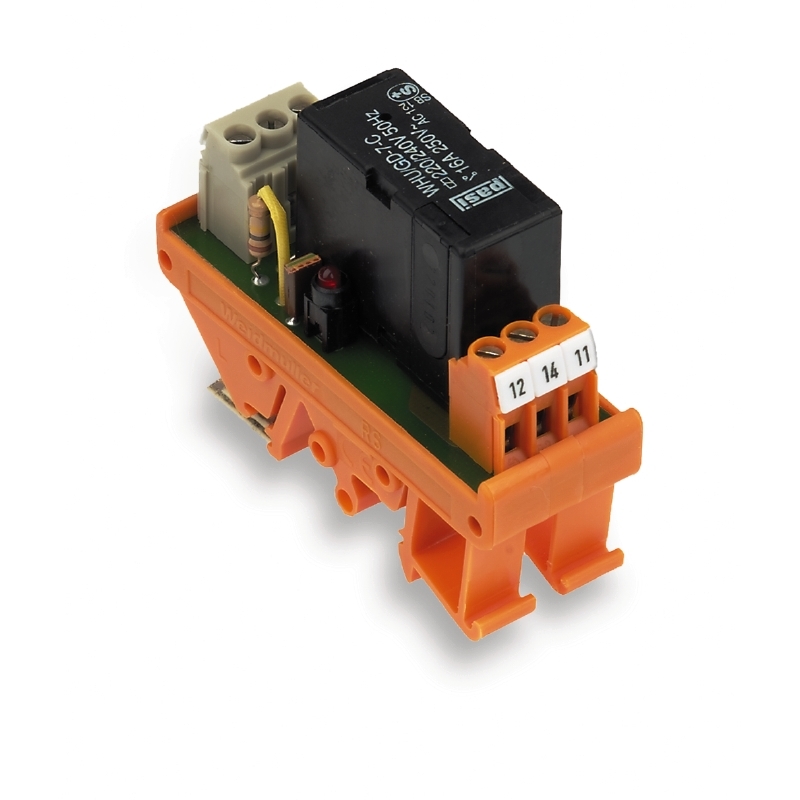

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | General Purpose Relay |
| 触点形式 | SPDT |
| 最大额定电流 | 60 A |
| 直流线圈电压 | 24 V |
| 安装 | DIN Rail |
| 线圈电流 | 40 mA |
| 线圈电阻 | 0.6 Ohm |
| 触点材料 | Silver Cadmium Oxide |
| 最大交流电压额定值 | 250 V |
| 工作温度 | -25 to 40 °C |
| 标准包装 | Bulk |
| 线圈电压 | 24VDC |
| 产品特点 | LED Indicator |
| 线圈类型 | Non Latching |
| 线圈功率 | 1 W |
| 触点形式 | SPDT (1 Form C) |
| 继电器类型 | General Purpose with Socket |
| 端接类型 | Screw Terminal |
| 切换电压 | 250VAC - Max |
| 释放时间 | 10ms |
| 封装 | Bulk |
| 操作时间 | 9ms |
| 触点额定值（电流） | 16A |
| 安装类型 | DIN Rail |
| RoHS指令 | Lead free / RoHS Compliant |
| Max* switching voltage, AC | 250 V |
| Continuous current | 16 A |
| Mechanical service life | 30 x 106 switching cycles |
| ETIM 3*0 | EC001437 |
| Pollution severity | 2 |
| Impulse withstand voltage | 6 kV |
| Engineering data | EPLAN |
| Net weight | 64.5 g |
| Inrush current | 60 A / 200 ms |
| Max* switching frequency at rated load | 0.1 Hz |
| Status indicator | LED yellow |
| 版本 | RS-SERIES, Relays, No. of contacts: 1 CO contact AgCdO, Rated control voltage: 24 V DC ±10 %, Continuous current: 16 A, Screw connection |
| Width (inches) | 0.984 inch |
| GTIN (EAN) | 4032248046812 |
| 额定功率 | 1 W |
| Contact material | AgCdO |
| Delivery status | This article will no longer be available in the future. |
| Pull-in/drop-out voltage, typ | 21.5 V DC |
| eClass 9*0 | 27-37-16-01 |
| Rated control voltage | 24 V DC ±10 % |
| eClass 7*1 | 27-37-16-01 |
| eClass 9*1 | 27-37-16-01 |
| UNSPSC | 30-21-19-17 |
| Height (inches) | 2.756 inch |
| Operating temperature | -25 °C...40 °C |
| eClass 5*1 | 27-37-16-01 |
| Protection degree | IP20 |
| Creepage and clearance distance input – output | > 3 mm |
| Duration of Bounce | > 6 ms |
| ETIM 5*0 | EC001437 |
| Contact design | CO contact |
| Rated switching voltage | 250 V AC |
| Depth (inches) | 2.106 inch |
| Clamping range, rated connection, min | 0.5 mm² |
| eClass 6*2 | 27-37-16-01 |
| 湿度 | 40 °C / 93 % rel. humidity, no condensation |
| Switch-on delay | < 9 ms |
| Pull-in/drop-out current, typ | 11.5 mA DC |
| 深度 | 53.5 mm |
| AC switching capacity (resistive), max | 3500 VA |
| Storage temperature | -40 °C...60 °C |
| Min* switching power | 1 W |
| 标准 | DIN EN 50178 |
| eClass 8*1 | 27-37-16-01 |
| Available until | 2017-06-30 |
| No* of contacts | 1 |
| Electrical service life, DC coil | 230V, 50Hz, 3.5kVA: 2.5*105 switching cycles |
| ETIM 4*0 | EC001437 |
| Wire connection method | Screw connection |
| 宽度 | 25 mm |
| ETIM 6*0 | EC001437 |
| Clamping range, rated connection | 2.5 mm² |
| Stripping length, rated connection | 8 mm |
| 身高 | 70 mm |
| DC switching capacity (resistive), max | 480 W |
| Switch-off delay | < 10 ms |
| Surge voltage category | III |
| 额定电压 | 250 V |
| Clamping range, rated connection, max | 4 mm² |
| Protective circuit | Free-wheel diode, Reverse polarity protection |
| Alternative product | 1479780000 |
| ROHS | Conform |
