Weidmuller

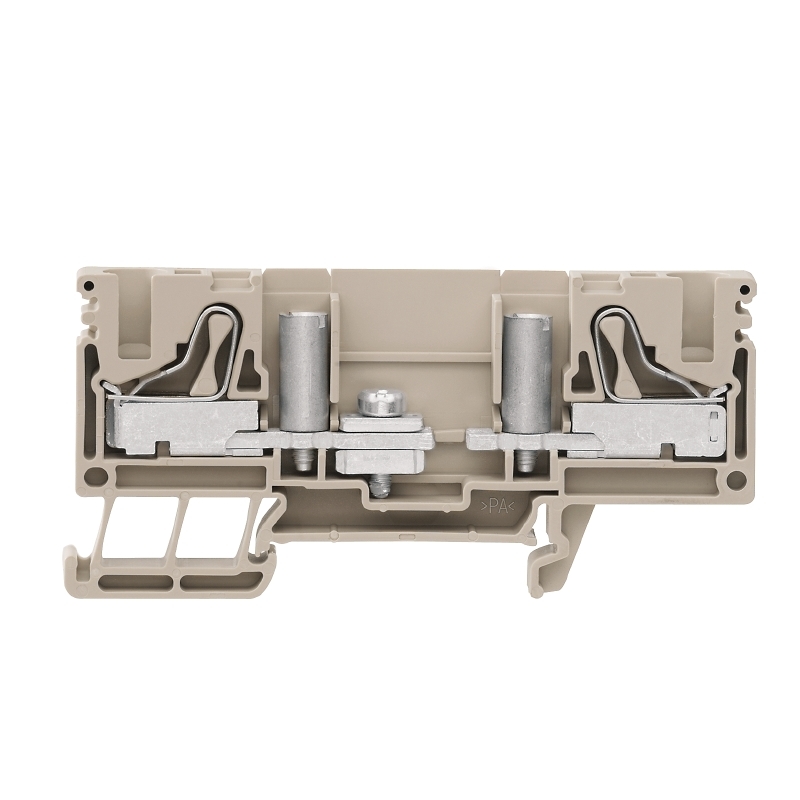

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 楼层数 | 1 |
| 断开类型 | Open |
| 线规或范围 - mm² | 1.5-6mm² |
| 颜色 | Beige |
| 剥线长度 | 14mm |
| 标准包装 | 1 |
| 端接类型 | Push In, Spring |
| 线规或范围 - AWG | 8 AWG |
| 位置数 | 2 |
| 材料 - 绝缘体 | Thermoplastic, Wemid |
| 电流 - IEC | 57A |
| 电压 - IEC | 800V |
| 电流 - UL | 45A |
| 电压 - UL | 600V |
| 材料阻燃等级 | UL94 V-0 |
| 类型 | Disconnect |
| 终端 - 宽度 | 8.1mm |
| RoHS指令 | Lead free / RoHS Compliant |
| Current size C (cURus) | 45 A |
| Type of connection | PUSH IN |
| ETIM 3*0 | EC000902 |
| Pollution severity | 3 |
| Mounting rail | TS 35 |
| Engineering data | EPLAN |
| Net weight | 25 g |
| eClass 9*1 | 27-14-11-26 |
| eClass 8*1 | 27-14-11-26 |
| 宽度 | 8.1 mm |
| Number of potentials | 1 |
| Certificate No* (cURus) | E60693 |
| Wire connection cross section AWG, max | AWG 8 |
| Width (inches) | 0.319 inch |
| GTIN (EAN) | 4032248847549 |
| eClass 9*0 | 27-14-11-26 |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| eClass 7*1 | 27-14-11-26 |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max | 10 mm² |
| Rated cross-section | 6 mm² |
| PE connection | No |
| N-function | No |
| 额定电流 | 57 A |
| Open sides | right |
| 材质 | Wemid |
| Voltage size D (cURus) | 600 V |
| Height (inches) | 3.228 inch |
| PE function | No |
| Current size D (cURus) | 5 A |
| Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max | 6 mm² |
| ETIM 4*0 | EC000902 |
| Voltage size B (cURus) | 600 V |
| ETIM 5*0 | EC000902 |
| Blade size | 0.6 x 3.5 mm |
| Number of levels | 1 |
| Depth (inches) | 1.559 inch |
| Clamping range, rated connection, min | 1.5 mm² |
| 颜色 | Dark Beige |
| Connection direction | top |
| Wire cross section max* (cURus) | 8 AWG |
| 标准 | IEC 60947-7-1 |
| Continuous operating temp, min | -50 °C |
| 深度 | 39.6 mm |
| PEN function | No |
| Wire cross section min* (cURus) | 16 AWG |
| End cover plate required | Yes |
| Type of mounting | Snap-on |
| Wire connection cross-section, finely stranded, min | 1.5 mm² |
| Declaration of Conformity | DE_PT1704_20160414_010_ISSUE01.pdf |
| Wire connection cross section, solid core, min* rated connection | 1.5 mm² |
| Depth including DIN rail | 40.35 mm |
| Continuous operating temp, max | 120 °C |
| Number of connections | 2 |
| 额定电压 | 800 V |
| Wire connection cross section AWG, min | AWG 16 |
| Gauge to IEC 60947-1 | A5 |
| Wire connection cross section, finely stranded, max | 10 mm² |
| ETIM 6*0 | EC000902 |
| Stripping length | 14 mm |
| Voltage size C (cURus) | 600 V |
| 身高 | 82 mm |
| Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min | 1.5 mm² |
| 版本 | PUSH IN connection, Special terminal longitudinal isolator, with sockets, One end without connector |
| eClass 6*2 | 27-14-11-26 |
| Current size B (cURus) | 45 A |
| UL 94 flammability rating | V-0 |
| Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min | 10 mm² |
| Clamping range, rated connection, max | 10 mm² |
| Number of potentials per tier | 1 |
| Wire connection cross section, solid core max* rated connection | 6 mm² |
| Rated impulse withstand voltage | 8 kV |
| ROHS | Conform |
| No* of clamping points per level | 2 |
| RESOURCE TYPE | LINK |
|---|---|
