Weidmuller

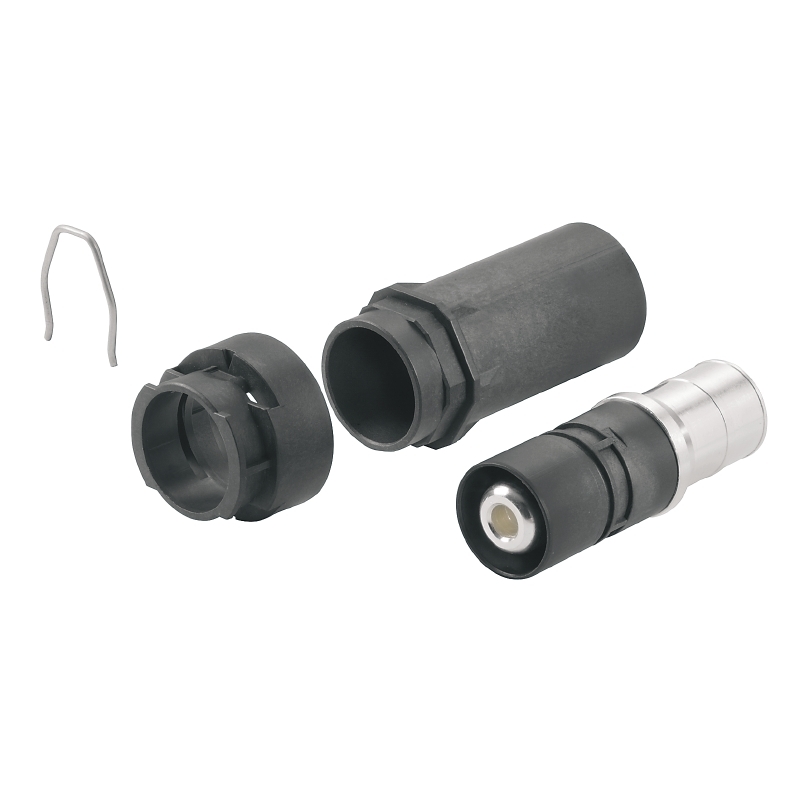

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Bulk |
| 额定电流 | 250A |
| 额定电压 | 3000V |
| 性别 | Male |
| 标准包装 | 1 |
| 端接类型 | Crimp |
| 连接器类型 | Insert |
| 触点表面涂层 | Silver |
| 外壳材料 | Polyamide (PA66), Nylon 6/6, Glass Filled |
| 工作温度 | -50°C ~ 120°C |
| 材料阻燃等级 | UL94 V-0 |
| 位置数 | 1 |
| 触点材料 | Copper Alloy |
| Limit temperature | -50 °C ... 120 °C |
| Conductor cross-section, min | 25 mm² |
| Pollution severity | PD 2 (PD 3) |
| UL 94 flammability rating | V-0 |
| Rated current (DIN EN 61984) | 250 A |
| Net weight | 128.23 g |
| eClass 9*1 | 27-44-02-04 |
| 版本 | HDC insert, Male, 3000 V, 250 A, Crimp connection, Size: 250 |
| Rated voltage (DIN EN 61984), power contact | 3,000 V |
| GTIN (EAN) | 4032248841769 |
| Rated current (DIN EN 61984), power contact | 250 A |
| 类型 | Male |
| Descriptive text technical data | In the version described here, the crimp contacts can be used for crimp connections with flexible, stranded, and finely stranded copper wires (according to DIN 48201 part 1 and DIN 57 295 VDE 0295) or with crimping inserts (according to DIN 48083 part 1, part 3 and part 4). We are happy to provide crimp contacts to meet your requirements. |
| Length (inches) | 3.252 inch |
| 系列 | HighPower |
| Surface finish | Silver passivated |
| eClass 7*1 | 27-44-02-05 |
| Type of connection, power contact | Crimp connection |
| 材质 | Copper alloy |
| Connection type PE | Crimp connection, Screw connection |
| eClass 8*1 | 27-44-02-05 |
| ETIM 4*0 | EC000437 |
| Volume resistance | ≤ 0.1 mΩ |
| Conductor cross-section, max | 25 mm² |
| ETIM 5*0 | EC000437 |
| Rated impulse voltage (DIN EN 61984), power contact | 15 kV |
| eClass 9*0 | 27-44-02-05 |
| Rated voltage (DIN EN 61984) | 3,000 V |
| Insulating material | Polyamide with fibre optic |
| eClass 6*2 | 27-26-07-02 |
| Stripping length, performance contact | 24 mm |
| 长度 | 82.6 mm |
| Descriptive text ordering data | In the version described here, the crimp contacts can be used for crimp connections with flexible, stranded, and finely stranded copper wires (according to DIN 48201 part 1 and DIN 57 295 VDE 0295) or with crimping inserts (according to DIN 48083 part 1, part 3 and part 4). We would be glad to customise the crimp contact to fit your requirements. |
| 直径 | 32 mm |
| Conductor cross-section | 25 mm² |
| ETIM 6*0 | EC000437 |
| Wire connection cross section AWG, max | AWG 4 |
| Stripping length, rated connection | 24 mm |
| Insulation resistance | 1010 Ω |
| Descriptive text accessories | For further accessories, see chapter J - tools, see chapter K |
| Rated impulse voltage (DIN EN 61984) | 15 kV |
| Type of connection | Crimp connection |
| ROHS | Conform |
| 尺寸 | 250 |
