Weidmuller

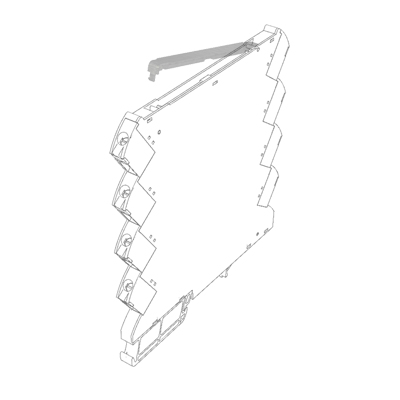

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 颜色 | Clear |
| 材质 | Plastic, Polycarbonate |
| 尺寸/尺寸 | 2.748" L x 0.240" W x 0.266" H (69.80mm x 6.10mm x 6.75mm) |
| 配用/相关产品 | CH20M Housing System |
| 标准包装 | 50 |
| 类型 | Cover, Lid |
| Contact to terminal rail | No |
| UL 94 flammability rating | V-0 |
| Operating temperature, max | 120 °C |
| eClass 7*1 | 27-18-27-02 |
| 宽度 | 6.1 mm |
| 版本 | Tilt cover |
| GTIN (EAN) | 4032248831203 |
| Max* relative humidity during storage | 80 % |
| CTI | ≥ 250 |
| Length (inches) | 2.748 inch |
| Insulating material group | IIIa |
| Height (inches) | 0.266 inch |
| Temperature range, installation, max | 85 °C |
| eClass 8*1 | 27-18-27-02 |
| ETIM 5*0 | EC001031 |
| eClass 9*0 | 27-18-27-02 |
| Insulating material | PC |
| 颜色 | Transparent |
| eClass 6*2 | 27-18-08-02 |
| Net weight | 0.64 g |
| 长度 | 69.8 mm |
| Width (inches) | 0.24 inch |
| Storage temperature, min | -40 °C |
| Protection degree | IP20 |
| Temperature range, installation, min | -25 °C |
| Storage temperature, max | 85 °C |
| 身高 | 6.75 mm |
| Operating temperature, min | -40 °C |
| ETIM 6*0 | EC001031 |
| Colour chart (similar) | Not specified |
| Encapsulation option | No |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
