Weidmuller

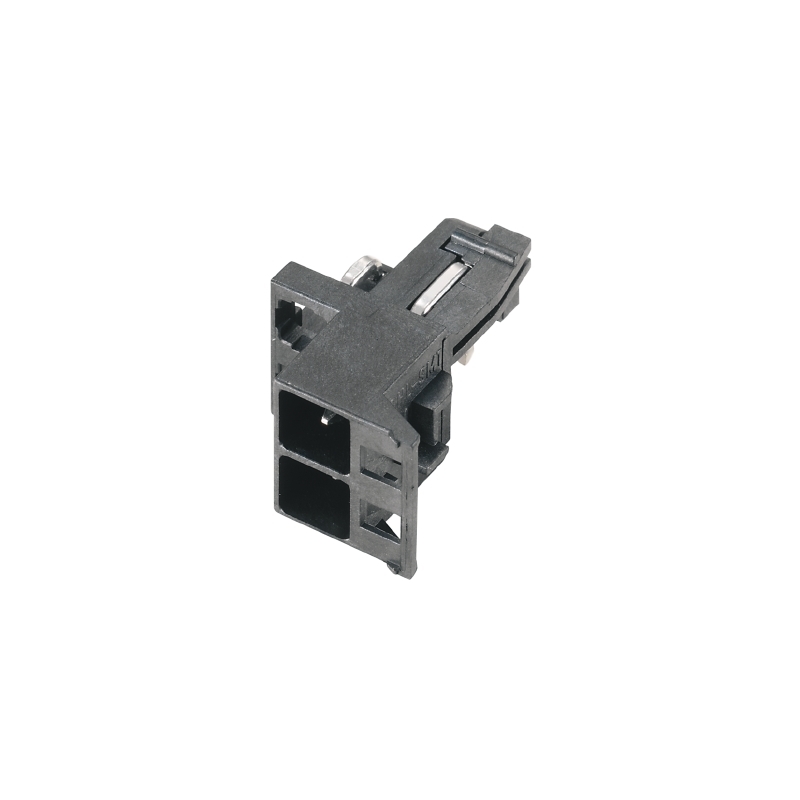

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Bulk |
| 楼层数 | 1 |
| 安装类型 | Through Hole |
| 间距 | 0.197" (5.00mm) |
| 每一级的位置 | 2 |
| 电流 | 9A |
| 端接块类型 | Header, Male Pins, Shrouded (4 Side) |
| 包头方向 | 90°, Right Angle |
| 电压 | 300V |
| 标准包装 | 156 |
| 端子 | Solder |
| 颜色 | Black |
| 位置数 | 2 |
| Temperature range, installation, max | 120 °C |
| Product family | OMNIMATE Housing - series CH20M |
| Number of solder pins per pole | 1 |
| UL 94 flammability rating | V-0 |
| Pin series quantity | 1 |
| Net weight | 1.83 g |
| Pitch in mm (P) | 5 mm |
| eClass 7*1 | 27-44-04-02 |
| 宽度 | 10.4 mm |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| 行数 | 1 |
| Certificate No* (cURus) | E60693 |
| L1 in inches | 0.197 inch |
| GTIN (EAN) | 4032248825110 |
| Rated voltage (Use group B) | 300 V |
| Max* relative humidity during storage | 80 % |
| CTI | ≥ 175 |
| Contact material | Cu-Leg |
| Length (inches) | 0.866 inch |
| Rated current (use group C) | 9 A |
| Insulating material group | IIIa |
| Temperature range, installation, min | -30 °C |
| Height (inches) | 0.567 inch |
| Pitch in inches (P) | 0.197 inch |
| Can be coded | Yes |
| Insulating material | LCP |
| EDA Layout Library (Mentor Graphics Expedition, Mentor Graphics Pads, Altium Designer) | Select your download |
| Rated voltage (use group B) | 300 V |
| Contact surface | tinned |
| ETIM 4*0 | EC002637 |
| Rated voltage (use group D) | 300 V |
| ETIM 5*0 | EC002637 |
| IPC conformity | The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request. |
| 版本 | PCB plug-in connector, Connection element, right, male header, 5.00 mm, No. of poles: 2, 90°, Solder pin length (l): 4.2 mm, tinned, Black, Box |
| eClass 9*0 | 27-44-04-02 |
| L1 in mm | 5 mm |
| 颜色 | Black |
| eClass 6*2 | 27-26-07-04 |
| Solder pin length tolerance | +0.1 / -0.3 mm |
| Solder pin length (l) | 4.2 mm |
| Operating temperature, max | 120 °C |
| 长度 | 22 mm |
| Rated current (use group D) | 9 A |
| Width (inches) | 0.409 inch |
| Storage temperature, min | -25 °C |
| eClass 8*1 | 27-44-04-02 |
| Rated voltage (Use group C) | 50 V |
| Moisture Level (MSL) | 1 |
| 类型 | SHL-SMT 5.00/02GR 1.5BX |
| Product data | IEC: 400 VUL: 300 V / 9 A / AWG 26 - AWG 12 |
| Rated current (use group B) | 9 A |
| Tolerance of solder pin position | +0.1 / -0.1 mm |
| ETIM 6*0 | EC002637 |
| Outgoing elbow | 90° |
| Wire cross-section, AWG, max | AWG 12 |
| 身高 | 14.4 mm |
| Operating temperature, min | -40 °C |
| Insulation resistance | ≥ 108 Ω |
| Plugging cycles | 25 |
| Storage temperature, max | 55 °C |
| Wire cross-section, AWG, min | AWG 26 |
| Colour chart (similar) | RAL 9011 |
| No* of poles | 2 |
| ROHS | Conform |
| Rated voltage (use group C) | 50 V |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
