Weidmuller

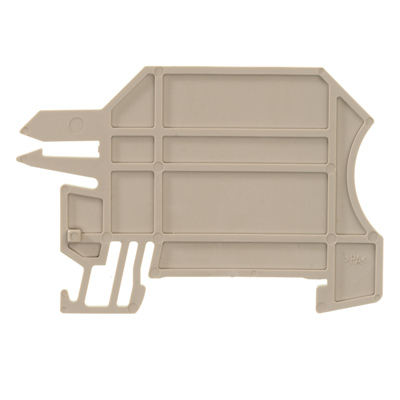

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 颜色 | Beige |
| 标准包装 | 20 |
| 类型 | End Plate, Rail Type |
| 配用/相关产品 | W Series |
| 附件类型 | Mounting Plate |
| 适用于 | Terminal Block |
| 系列 | W |
| RoHS指令 | Compliant |
| ETIM 3*0 | EC000886 |
| Mounting rail | TS 35 |
| Engineering data | EPLAN |
| Net weight | 3.876 g |
| eClass 9*1 | 27-14-11-33 |
| 宽度 | 2 mm |
| 版本 | End and intermediate plate |
| UL 94 flammability rating | V-0 |
| Snap-on | Yes |
| 材质 | Wemid |
| UNSPSC | 30-21-18-27 |
| Height (inches) | 2.579 inch |
| GTIN (EAN) | 4008190139636 |
| eClass 5*1 | 27-14-11-33 |
| eClass 8*1 | 27-14-11-33 |
| ETIM 4*0 | EC000886 |
| ETIM 5*0 | EC000886 |
| Depth (inches) | 1.831 inch |
| Installation advice | Feed-through (bushing) |
| 颜色 | Dark Beige |
| eClass 7*1 | 27-14-11-33 |
| Continuous operating temp, min | -50 °C |
| 深度 | 46.5 mm |
| Continuous operating temp, max | 120 °C |
| Width (inches) | 0.079 inch |
| TS 35 offset | 32 mm |
| ETIM 6*0 | EC000886 |
| 身高 | 65.5 mm |
| eClass 9*0 | 27-14-11-33 |
| eClass 6*2 | 27-14-11-33 |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
