Weidmuller

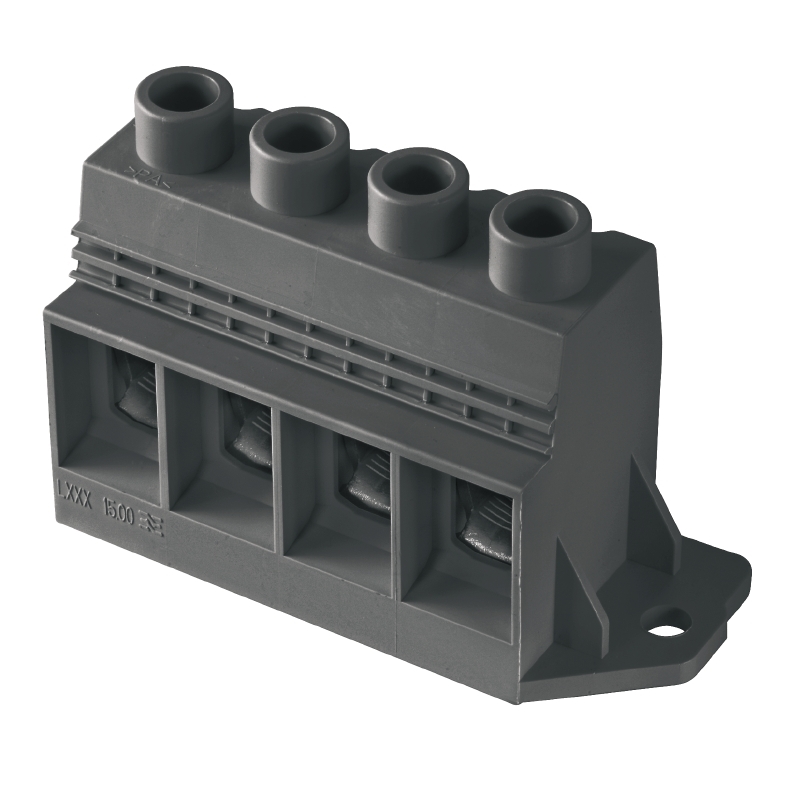

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Bulk |
| 楼层数 | 1 |
| 安装类型 | Through Hole |
| 啮合定位 | Horizontal with Board |
| 线规 | 1-20 AWG |
| 每一级的位置 | 3 |
| 间距 | 0.591" (15.00mm) |
| 外壳材料 | Thermoplastic, Wemid |
| 电流 | 127A |
| 颜色 | Black |
| 工作温度 | -50°C ~ 120°C |
| 螺纹 | M6 |
| 电压 | 600V |
| 导线端子 | Screw - Clamping Yoke, Tension Sleeve |
| 标准包装 | 10 |
| 转矩 - 螺钉 | 2.5-4 Nm (22.1-35.4 Lb-In) |
| 触点材料 - 镀层 | Copper Alloy - Tin Plated |
| 产品特点 | Flange (Mounting) |
| Solder eyelet hole diameter (D) | 1.6 mm |
| Net weight | 92 g |
| Wire connection cross section AWG, max | AWG 1 |
| Rated voltage (Use group B) | 600 V |
| Pitch in inches (P) | 0.591 inch |
| Stranded, max* H07V-R | 50 mm² |
| Wire connection method | Clamping yoke connection |
| Layer structure of solder connection | 1.5-3 µm Ni / 4-6 µm Sn matt |
| EDA Layout Library (Mentor Graphics Expedition, Mentor Graphics Pads, Altium Designer) | Select your download |
| w plastic collar ferrule, DIN 46228 pt 4, max | 35 mm² |
| Rated voltage (use group B) | 600 V |
| Conductor outlet direction | 90° |
| Solid, max* H05(07) V-U | 16 mm² |
| Insulating material | Wemid (PA) |
| Rated voltage (use group D) | 600 V |
| Product data | IEC: 1000 V / 150 A / 0.5 - 50 mm²UL: 600 V / 127 A / AWG 20 - AWG 1 |
| Rated voltage (Use group C) | 600 V |
| Tightening torque, min | 2.5 Nm |
| Stranded, min* H07V-R | 6 mm² |
| Tightening torque, max | 4 Nm |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 8 kV |
| Insulation resistance | ≥ 108 Ω |
| Clamping range, rated connection, max | 50 mm² |
| Wire connection cross section AWG, min | AWG 20 |
| Rated voltage (use group C) | 600 V |
| Product family | OMNIMATE Power - series LXXX |
| GTIN (EAN) | 4032248783533 |
| Screwdriver blade | 1.2 x 6.5 |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 8 kV |
| 版本 | PCB terminal, 15.00 mm, No. of poles: 3, 90°, Solder pin length (l): 4.5 mm, tinned, Black, Clamping yoke connection, Clamping range, rated connection, max.: 50 mm², Box |
| L1 in inches | 1.181 inch |
| 类型 | LXXX 15.00/03/90FR 4.5SN BK BX |
| Flexible, min* H05(07) V-K | 0.5 mm² |
| Rated current, min* no* of poles (Ta = 20°C) | 150 A |
| Insulating material group | I |
| Temperature range, installation, max | 120 °C |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 8 kV |
| w* wire end ferrule, DIN 46228 pt 1, min | 0.5 mm² |
| eClass 8*1 | 27-44-04-01 |
| eClass 9*0 | 27-44-04-01 |
| Mounting onto the PCB | THT solder connection |
| Storage temperature, min | -25 °C |
| tested acc* to standard | IEC 60664-1, IEC 61984 |
| Rated current (use group D) | 5 A |
| Storage temperature, max | 55 °C |
| Fitted by customer | No |
| Clamping screw | M 6 |
| ROHS | Conform |
| ETIM 3*0 | EC001284 |
| Motion controllers white paper | Download Whitepaper |
| Operating temperature, max | 120 °C |
| Max* relative humidity during storage | 80 % |
| CTI | ≥ 600 |
| Rated current (use group C) | 127 A |
| Pitch in mm (P) | 15 mm |
| Contact surface | tinned |
| ETIM 5*0 | EC002643 |
| Rated voltage for surge voltage class / pollution degree III/3 | 1,000 V |
| IPC conformity | The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request. |
| L1 in mm | 30 mm |
| eClass 7*1 | 27-44-04-01 |
| Screwdriver blade standard | DIN 5264 |
| Rated voltage for surge voltage class / pollution degree II/2 | 1,000 V |
| Rated current, min* no* of poles (Ta = 40°C) | 150 A |
| Temperature range, installation, min | -25 °C |
| Solder pin dimensions | 1.2 x 1.2 mm |
| Rated current (use group B) | 127 A |
| Stripping length | 18 mm |
| Solid, min* H05(07) V-U | 0.5 mm² |
| w plastic collar ferrule, DIN 46228 pt 4, min | 0.5 mm² |
| Rated voltage for surge voltage class / pollution degree III/2 | 1,000 V |
| eClass 6*2 | 27-26-11-01 |
| Wire cross-section, AWG, min | AWG 20 |
| Certificate No* (CSA) | 200039-1198743 |
| Colour chart (similar) | RAL 9011 |
| No* of poles | 3 |
| Wire cross-section, AWG, max | AWG 1 |
| Number of solder pins per pole | 4 |
| Engineering data | EPLAN |
| 行数 | 1 |
| Contact material | Cu-Leg |
| Clamping range, rated connection, min | 0.5 mm² |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Flexible, max* H05(07) V-K | 35 mm² |
| Certificate No* (UR) | E60693 |
| ETIM 4*0 | EC002643 |
| 注 | Additional colours on request Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. IP 20 from 16 mm² to 50 mm² The test point can only be used as potential-pickup point. |
| Solder pin length (l) | 4.5 mm |
| UL 94 flammability rating | V-0 |
| w wire end ferrule, DIN 46228 pt 1, max | 35 mm² |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| 颜色 | Black |
| ETIM 6*0 | EC002643 |
| Operating temperature, min | -50 °C |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
