Weidmuller

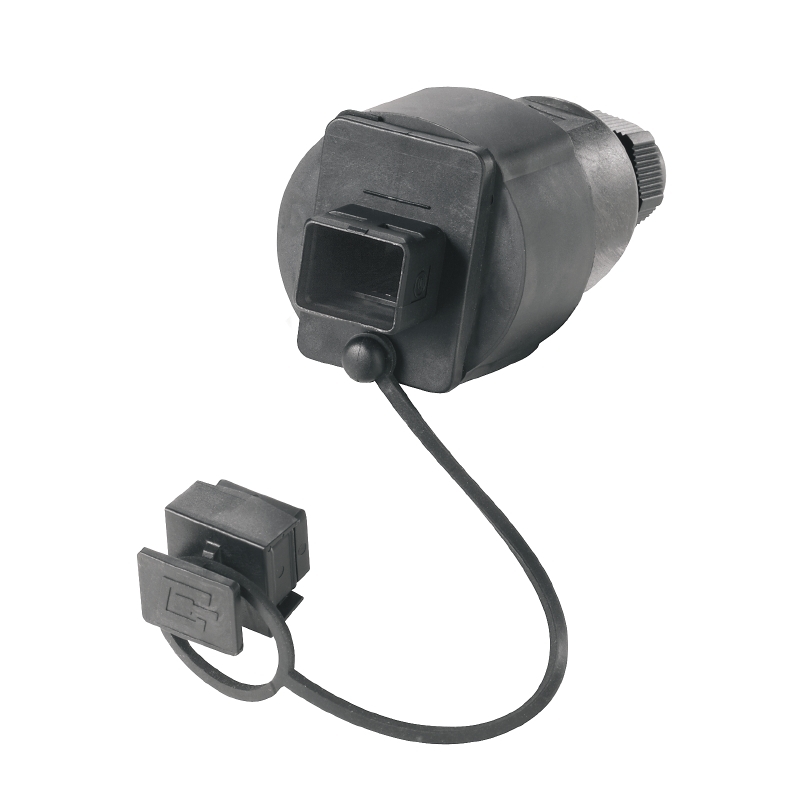

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 颜色 | Black |
| 标准包装 | 1 |
| 附件类型 | Housing with Cover |
| 配用/相关产品 | Modular RJ45 Jack |
| 产品特点 | Cover |
| RoHS指令 | Lead free / RoHS Compliant |
| ETIM 3*0 | EC001134 |
| Net weight | 78.1 g |
| Housing main material | PA UL 94 V0 |
| 版本 | Coupling, IP67, Variant 4 to IEC 61076-3-106 |
| GTIN (EAN) | 4032248781072 |
| 类型 | IE-CC-V04P |
| Type of mounting | Floor-mounted, for exposed connections, Wall mounting |
| UNSPSC | 30-21-18-01 |
| Operating temperature | -40 °C...70 °C |
| eClass 8*1 | 19-17-01-25 |
| ETIM 4*0 | EC001134 |
| ETIM 5*0 | EC001134 |
| eClass 9*0 | 19-17-01-25 |
| 颜色 | Black |
| eClass 6*2 | 27-25-05-04 |
| Connector standard | IEC 61076-3-106 Var. 4 |
| Protection degree | IP67 |
| eClass 7*1 | 27-25-05-04 |
| Sheath diameter, max | 9.5 mm |
| Plugging cycles | 750 |
| ETIM 6*0 | EC001134 |
| Sheath diameter, min | 6 mm |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
