Weidmuller

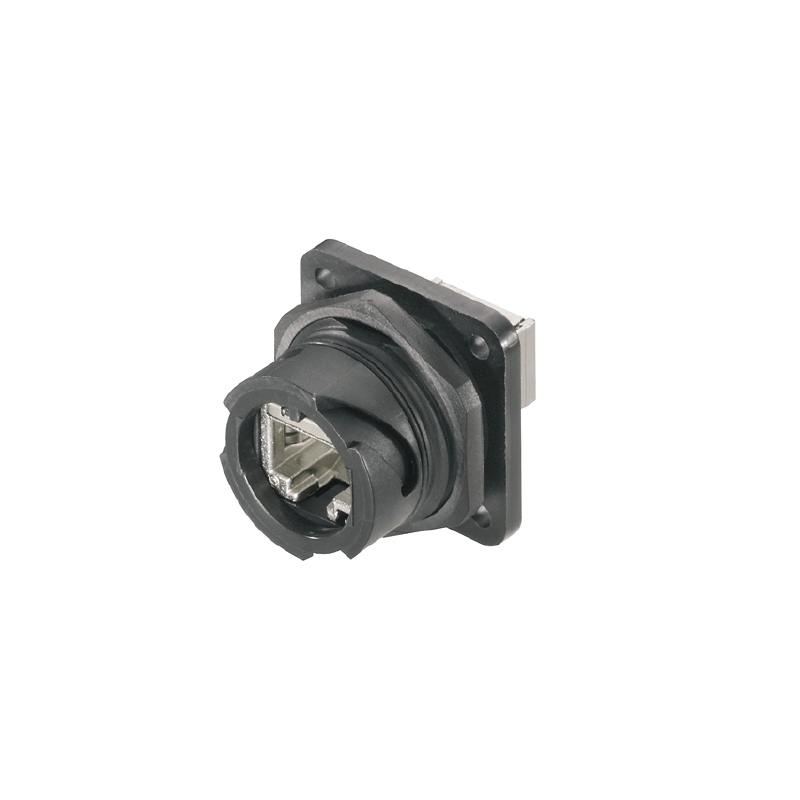

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 评分 | Cat6a |
| 翼片方向 | User Selectable |
| 屏蔽 | Shielded |
| 安装类型 | Panel Mount, Bulkhead |
| 位置/触点数 | 8p8c (RJ45, Ethernet) |
| 行数 | 1 |
| 端子 | IDC |
| 标准包装 | 1 |
| 连接器类型 | Jack |
| 触点表面涂层 | Gold |
| 封装 | Bulk |
| 端口数 | 1 |
| 工作温度 | -40°C ~ 70°C |
| LED颜色 | Does Not Contain LED |
| 产品特点 | Circular Bayonet Coupling |
| 防护等级 | IP67 - Dust Tight, Waterproof |
| 定位 | Straight |
| 其他名称 | IE-BS-V01P-RJ45-FJ-A |
| 触点材料 | Nickel |
| RoHS指令 | Lead free / RoHS Compliant |
| ETIM 3*0 | EC001121 |
| UNSPSC | 30-21-18-17 |
| Wiring | TIA-568A |
| Net weight | 39.7 g |
| Housing main material | PA UL 94 V0 |
| 版本 | Flange RJ45, IP67, Variant 1 plastic, EIA/TIA 586 A, Cat.6A / Class EA (ISO/IEC 11801 2010) |
| GTIN (EAN) | 4032248720033 |
| 类型 | IE-BS-V01P-RJ45-FJ-A |
| eClass 9*0 | 19-17-01-25 |
| eClass 7*1 | 27-25-05-04 |
| Connection diameter, solid | 0.4...0.64 mm |
| Conductor connection cross-section, solid (AWG) | AWG 24...AWG 22 |
| Operating temperature | -40 °C...70 °C |
| eClass 5*1 | 27-26-12-03 |
| Conductor connection cross-section, flexible (AWG) | AWG 26...AWG 22 |
| Contact surface | Gold over nickel |
| ETIM 4*0 | EC001121 |
| ETIM 5*0 | EC001121 |
| 连接1 | RJ45 |
| 连接2 | IDC |
| eClass 9*1 | 27-44-09-90 |
| Certificate no* (cULus) | E316369 |
| Installation video | STEADYTEC® assembly instruction RJ45 field attachable module_EN_HD.mp4 |
| Connector standard | IEC 61076-3-106 Var. 1, IEC 60603-7-51 |
| Insulation cross-section, max | 1.6 mm |
| UL Approval | DUXR.E316369.pdf |
| Description of article | Variant 1 plastic, EIA/TIA 586 A |
| Protection degree | IP67 |
| Seal material | NBR |
| eClass 8*1 | 19-17-01-25 |
| ETIM 6*0 | EC001121 |
| Plugging cycles | 750 |
| Connection diameter, flexible | 0.48...0.76 mm |
| eClass 6*2 | 27-25-05-04 |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
