weidmuller

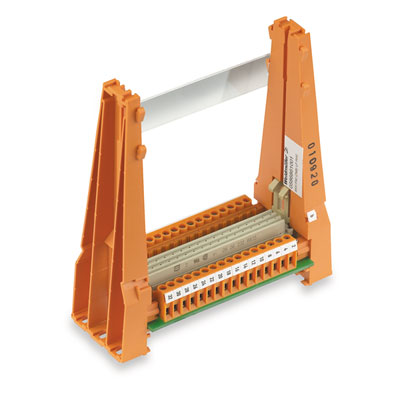

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Card Holder |
| 性别 | F |
| 触点数 | 32 |
| 身体上的取向 | Straight |
| 标准包装 | Bulk |
| 安装类型 | Board Mounted |
| 转换到（适配器端） N插孔，母插口 | Card Edge Connector, 32 Pos |
| 转换源（适配器端） N插孔，母插口 | Terminal Blocks, Screw Connection, 32 Pos, 2 Rows |
| 其他名称 | SKHF32S/ZB |
| RoHS指令 | Lead free / RoHS Compliant |
| Clamping range, min | 0.13 mm² |
| ETIM 3*0 | EC001419 |
| Clamping range, max | 6 mm² |
| Flexible with sleeve, min | 0.5 mm² |
| 宽度 | 131 mm |
| Number of poles (control side) | 32-pole female |
| 版本 | Interface, Plug-in connector, acc. to DIN 41612 female, 32F |
| Width (inches) | 5.157 inch |
| GTIN (EAN) | 4032248046263 |
| eClass 7*1 | 27-14-11-52 |
| Flexible, min* H05(07) V-K | 0.5 mm² |
| Contact assembly | z and b |
| Rated current per connection | 4 A |
| Length (inches) | 2 inch |
| Pulse voltage test (1,2/50μs) | 2.1 kV |
| eClass 9*1 | 27-24-22-92 |
| UNSPSC | 30-21-18-01 |
| Height (inches) | 5.669 inch |
| Rated insulation voltage | 250 V |
| Connection (field side) | LP 5.08mm |
| Operating temperature | 0...55°C |
| eClass 5*1 | 27-24-22-04 |
| Design of the pluggable board | 100x160 mm euro format for 19" racks |
| eClass 8*1 | 27-24-92-05 |
| ETIM 4*0 | EC001421 |
| ETIM 5*0 | EC001421 |
| eClass 9*0 | 27-14-11-52 |
| Solid, max* H05(07) V-U | 6 mm² |
| Flexible, max* H05(07) V-K | 4 mm² |
| eClass 6*2 | 27-24-22-04 |
| Sleeve with plastic collar, max | 2.5 mm² |
| Max* wire cross-section, AWG [field] | AWG 12 |
| Net weight | 200 g |
| 长度 | 50.8 mm |
| Insulation test voltage | 1.2 kVAC |
| Type (control side) | 32F |
| Storage temperature | -40...60 °C |
| Connection on control side | Plug-in connector, acc. to DIN 41612 female |
| 额定电压 | 250 V UC |
| Tightening torque, min | 0.5 Nm |
| Min* wire cross-section, AWG [field] | AWG 26 |
| Descriptive text accessories | Kit for connection to TS35: Installation motherboard 2054280000 and mounting foot to TS35 0687900000 |
| Stripping length | 6 mm |
| Tightening torque, max | 0.6 Nm |
| 身高 | 144 mm |
| Flexible with sleeve, max | 2.5 mm² |
| Solid, min* H05(07) V-U | 0.5 mm² |
| According to | DIN EN 50178 |
| Surge voltage category | II |
| ETIM 6*0 | EC002780 |
| Pollution severity level | 2 |
| Type of connection | Screw connection |
| ROHS | Conform |
