Cherry Electrical

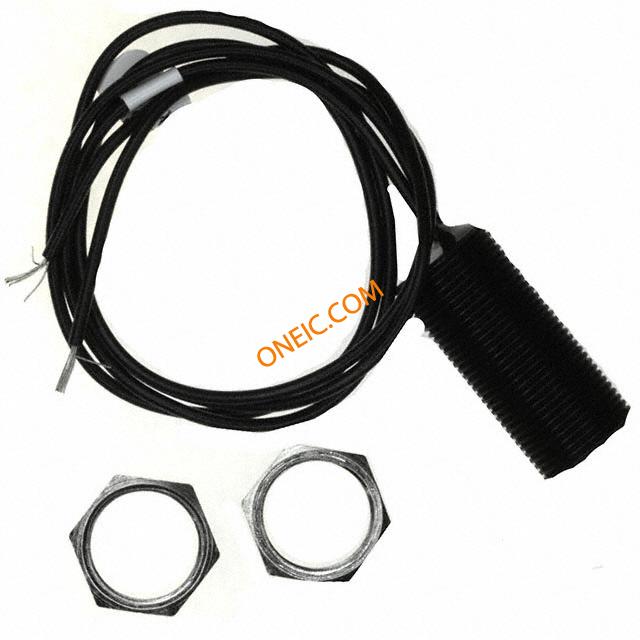

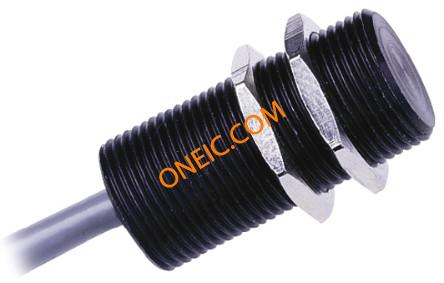

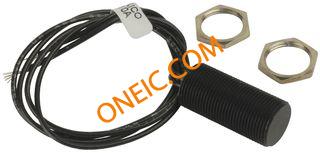

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 欧盟RoHS指令 | Compliant |
| 安装 | Panel |
| PCB | 2 |
| Package Length | 25.4 |
| 引脚数 | 2 |
| 铅形状 | Cable |
| 子类别 | Sensor Misc |
| 交货期 | 126 Days |
| 功能 | Switch |
| 必须的操作 | 3.81mm |
| 类型 | Reed Switch |
| 端接类型 | Wire Leads |
| 输出类型 | SPST-NC |
| 执行器材质 | Magnet |
| 电压 - 电源 | 100V |
| 标准包装 | 25 |
| 必须的释放 | 12.70mm |
| 其他名称 | CH709 |
| 封装/外壳 | * |
| RoHS指令 | Lead free / RoHS Compliant |
| 应用 | Magnetic Proximity Sensor |
| 长度 | 25.4mm |
| 形状 | Cylindrical |
| 产品种类 | Proximity Sensors |
| 检测方法 | Magnetic |
| 最高工作温度 | + 105 C |
| 安装风格 | Panel |
| 电源电压 | 30 V |
| 最低工作温度 | - 40 C |
| 电源电流 | 200 mA |
| RoHS | RoHS Compliant |
| Sensor Housing | :Cylindrical |
| 输出电流 | :200mA |
| Leaded Process Compatible | :No |
| Peak Reflow Compatible (260 C) | :No |
| Sensing Range Max | :12.7mm |
| Sensor Input | :Magnetic |
| Sensor Output | :SPST-NC |
| Weight (kg) | 0.014 |
| Tariff No. | 90318038 |
| Brand/Series | MP2007 |
| Current,Rating | 0.2A(Max.) |
| PrimaryType | Proximity |
| Resistance,Contact | 0.200Ohms(Max.) |
| 技术 | HallEffect |
| Temperature,Operating,Maximum | 105°C |
| Temperature,Operating,Minimum | -40°C |
| WireSize | 24AWG |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
