Cherry Electrical

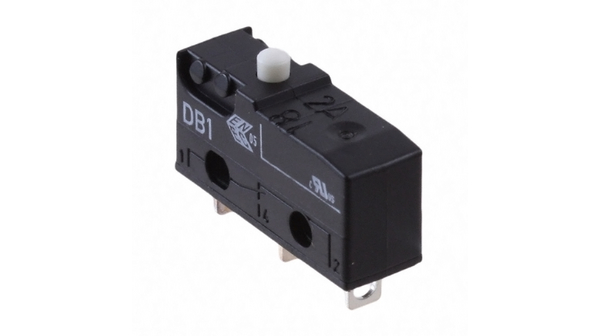

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Bulk |
| Differential Travel | 0.004" (0.1mm) |
| 开关功能 | On-Mom |
| 额定电流 | 5A (AC), 1A (DC) |
| 操作力，扭矩 | 150gf |
| 安装类型 | Chassis Mount |
| 额定电压 - AC | 125V |
| 端接类型 | Solder Lug |
| 电气寿命 | 6,000 Cycles |
| 工作职位 | 0.330" (8.4mm) |
| 超程 | 0.025" (0.6mm) |
| 工作温度 | -40°C ~ 120°C |
| 执行器类型 | Round (Pin Plunger) |
| 标准包装 | 1,200 |
| 额定电压 - DC | 48V |
| 防护等级 | IP50 - Dust Protected |
| 预行程 | 0.040" (1.0mm) |
| 机械寿命 | 15,000,000 Cycles |
| 电路 | SPDT |
| 联系配置 | SPDT-NO/NC |
| 触点额定电流 | 6 A @ 250 V ac |
| 触点材料 | Gold; Silver Alloy |
| 最高工作温度 | +120°C |
| 最低工作温度 | -40°C |
| 操作力 | 1.47 N |
| 终端类型 | Solder |
| RoHS指令 | Compliant |
| Microswitch Type | :Snap Action |
| 执行器风格 | :Plunger |
| 开关操作 | :(Not Applicable) |
| Operating Force Max | :150gf |
| Contact Voltage AC Nom | :250V |
| Contact Current Max | :5A |
| Switch Terminals | :Solder |
| 驱动类型 | :Plunger |
| Approval Bodies | :ENEC, KEMA-KEUR |
| Approval Category | :UL Recognised |
| Contact Current AC | :5A |
| Contact Current AC Max | :5A |
| Contact Voltage AC Max | :250V |
| Differential Travel Max | :0.10mm |
| 外部深度 | :6.5mm |
| External Length / Height | :9mm |
| 外宽 | :20mm |
| Fixing Centres LxW | :9.5mm |
| 可燃性等级 | :UL 94V- O |
| IP / NEMA Rating | :IP50 |
| 材质 | :PET |
| No. of Electrical Operations | :6000 |
| No. of Poles | :1 |
| Operating Temperature Max | :120°C |
| Operating Temperature Min | :-40°C |
| Over Travel Min | :0.6mm |
| Pre-travel | :1.0mm |
| 系列 | :DP |
| Switch Case | :PET (Polyethylene Terephthalate) |
| Weight (kg) | 0.0018 |
| Tariff No. | 85365080 |
