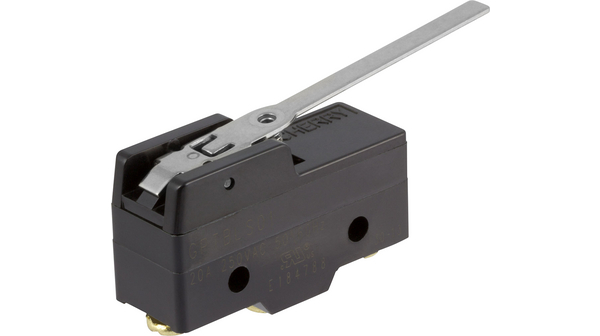

图片仅供参考,产品以实物为准
| 规格书 |
 |
| Status | Active |
| 执行器类型 | Long Hinge Lever |
| 联系配置 | SPDT-NO/NC |
| 触点额定电流 | 20 A @ 250 V ac |
| 触点材料 | Silver Alloy |
| 最高工作温度 | +85°C |
| 机械寿命 | 1000000Operations |
| 最低工作温度 | -20°C |
| 操作力 | 0.78 N |
| 释放力 | 0.14N |
| 终端类型 | Screw |
| ActuatorType | FlatLever |
| BodyStyle | Ultra-Miniature |
| Current,Rating | 20Amps |
| DielectricStrength | 1000VAC |
| MountingHoleSize | 0.14" |
| MountingType | Panel |
| 操作 | SnapAction |
| SpecialFeatures | HeavyDuty |
| 端子 | Screws |
| 类型 | Basic |
| Voltage,Rating | 250VAC |
| 额定电流 | 20 A |
| Actuation | Flat lever, long |
| 颜色 | black |
| Actuation force | 0.78 N |
| 外壳材料 | Phenol Formaldehyde (Phenolic/PF) |
| Termination type | Screw Connection |
| 额定电压 | 250 |
| Temperature range | -5...+40 °C |
| Protection rating | IP 40 |
| Contact material | Brass |
