Apem

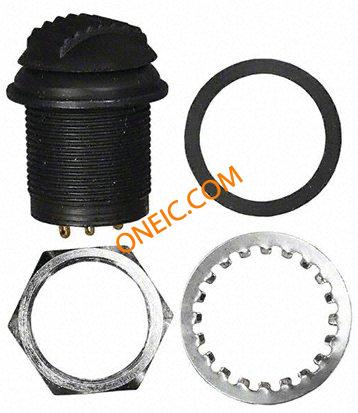

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器材质 | PA 6.6 |
| 联系配置 | SPDT |
| 触点额定电流 | 100 mA @ 30 V dc, 6 A @ 125 V ac |
| 触点材料 | Gold Plated Silver |
| 接触电阻 | 10mΩ |
| IP等级 | IP51 |
| 最高工作温度 | +85°C |
| 最低工作温度 | -40°C |
| 安装类型 | Panel Mount |
| 开关操作 | On-Momentary |
| 终端类型 | Solder |
| 安装风格 | Through Hole |
| 端子密封 | Sealed |
| 触点形式 | SPDT |
| 开关功能 | ON - (ON) |
| 端接类型 | Solder Pin |
| 衬套尺寸 | 11/16-28 |
| 封装 | Bulk |
| 触点电镀 | Gold |
| 执行器 | Bat |
| RoHS | RoHS Compliant |
| 执行器风格 | :Thumbwheel |
| Contact Voltage AC Max | :250V |
| Contact Voltage DC Max | :30V |
| Contact Current Max | :6A |
| Switch Mounting | :Panel |
| 定位 | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| 执行器类型 | :Curved |
| 颜色 | :Black |
| Dielectric Strength VDC | :1000V |
| 绝缘电阻 | :1000Mohm |
| No. of Electrical Operations | :50000 |
| No. of Mechanical Operations | :100000 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Weight (kg) | 0.02 |
| Tariff No. | 85365080 |
