Apem

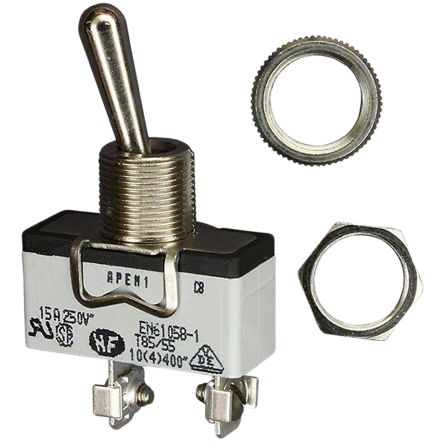

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工厂包装数量 | 25 |
| 电压额定值AC | 250 V |
| 产品种类 | Toggle Switches |
| 安装类型 | Bushing |
| 端子密封 | Sealed |
| 系列 | 600 H |
| 触点形式 | SPDT |
| 开关功能 | ON - (ON) |
| 端接类型 | Screw |
| 衬套尺寸 | M12 |
| 封装 | Bulk |
| 安装风格 | Panel |
| 触点电镀 | Silver |
| 执行器 | Paddle |
| RoHS | RoHS Compliant |
| Leads | screw |
| Contacts configuration | SPST |
| Body dimensions | 29.5 x 14 x 15mm |
| Knob height | 17.5mm |
| Mounting hole diameter | Ø12.2mm |
| Multiplicity | 1 |
| Electrical life | 10000cycles |
| Associated items | U851 |
| Gross weight | 0.03 kg |
| Switching method | ON-(ON) |
| Operating temperature | -20...55°C |
| Switch type | toggle |
| Toggle type | round |
| 接触镀层 | silver nickel alloy |
| Stable positions number | 1-position |
| spg | 50 |
| Collective package [pcs] | 50 |
| Number of positions | 2 |
| AC contacts rating (at resistance load) | 15 A / 250 VAC |
| SubCategory | Toggle Switch |
| MainCategory | Switches |
| 面板切口直径 | 12.2mm |
| 触点电阻 | 10mΩ |
| 开关操作 | (On)-On |
| 执行器长度 | 17.5mm |
| 最高工作温度 | 55°C |
| 满足标准 | CSA、NF-VDE、UL、UL 认证 |
| 安装类型 | 面板安装 |
| 最低工作温度 | -20°C |
| 工作温度范围 | -20 → +55°C |
| 额定电压 | 400V 交流 |
| 触点配置 | 单刀双掷 |
| 机械寿命 | 10000 (Electrical)Cycles |
| 触点材料 | 镍合金，银 |
| 执行器材料 | 镀镍黄铜 |
| Board Level Components | Y |
| 触点额定电流 | 10 A |
| 接端类型 | 螺丝 |
| 面板切口大小 | 12.2 (Dia.)mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
