APEM

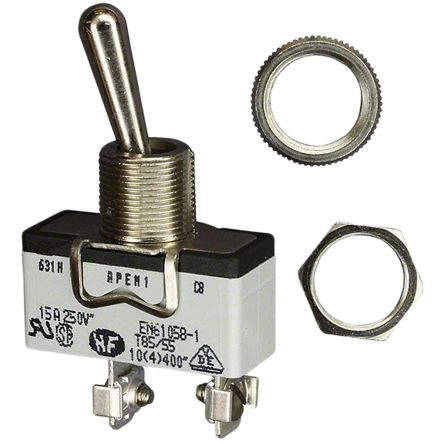

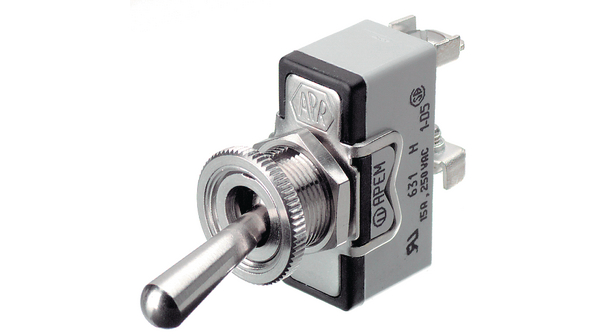

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工厂包装数量 | 25 |
| 产品种类 | Toggle Switches |
| 安装类型 | Bushing |
| 触点形式 | SPST |
| 开关功能 | ON - OFF |
| 端接类型 | Screw |
| 衬套尺寸 | M12 |
| 安装风格 | Panel |
| 触点电镀 | Silver |
| 执行器 | Paddle |
| RoHS | RoHS Compliant |
| 联系配置 | :SPST |
| 开关操作 | :On-Off |
| Contact Voltage AC Nom | :250V |
| Contact Voltage DC Nom | :24V |
| Contact Current Max | :15A |
| Switch Terminals | :Screw |
| 执行器风格 | :Bat |
| Switch Mounting | :Panel |
| Weight (kg) | 0 |
| Tariff No. | 85365007 |
| Weight (g): | 30.00000 |
| Leads | screw |
| Contacts configuration | SPST |
| Body dimensions | 29.5 x 14 x 15mm |
| Knob height | 17.5mm |
| Mounting hole diameter | Ø12.2mm |
| Multiplicity | 1 |
| Electrical life | 10000cycles |
| Associated items | U851 |
| Gross weight | 0.03 kg |
| Switching method | ON-OFF |
| Operating temperature | -20...55°C |
| Switch type | toggle |
| Toggle type | round |
| 接触镀层 | silver nickel alloy |
| Stable positions number | 2-position |
| spg | 50 |
| Collective package [pcs] | 50 |
| Number of positions | 2 |
| AC contacts rating (at resistance load) | 15 A / 250 VAC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
