Lorlin

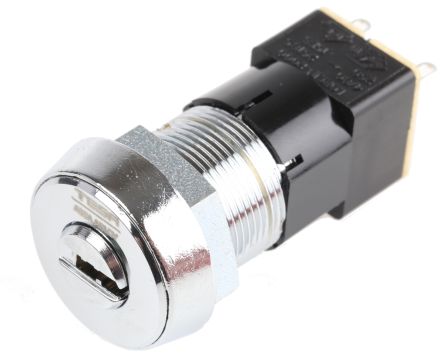

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 挡板形状 | Round |
| 联系配置 | DPST |
| 触点额定电流 | 80 A @ 250 V ac |
| 触点材料 | Silver Plated Brass |
| 密钥索引角 | 90° |
| 密钥类型 | Flat |
| 最高工作温度 | +85°C |
| 最低工作温度 | -25°C |
| 位置数 | 2 |
| 开关操作 | Off-On |
| 终端类型 | Solder |
| 摆动角度 | :90° |
| 执行器风格 | :Flat |
| No. of Switch Positions | :1 |
| Contact Voltage AC Nom | :250V |
| Contact Current Max | :50mA |
| Switch Terminals | :Solder |
| SVHC | :No SVHC (20-Jun-2013) |
| 驱动类型 | :Flat |
| 执行器类型 | :Flat |
| Behind Panel Depth | :38.2mm |
| Contact Current AC Max | :4A |
| 接触电阻 | :20mohm |
| Contact Voltage AC Max | :250V |
| 外部深度 | :45.2mm |
| External Diameter | :22mm |
| 可燃性等级 | :UL94V-0 |
| Full Angle | :90° |
| Indexing Angle | :90° |
| 绝缘电阻 | :999Mohm |
| Insulation Resistance Voltage | :500VDC |
| No. of Electrical Operations | :10000 |
| No. of Mechanical Operations | :10000 |
| No. of Poles | :2 |
| No. of Positions | :1 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-25°C |
| Panel Thickness Max | :15mm |
| Proof Voltage | :3kV |
| 系列 | :DSL |
| Single Flat Panel Cut-out Diameter | :19.1mm |
| Switching Current AC Max | :4A |
| Weight (kg) | 0.094 |
| Tariff No. | 85365015 |
