Fastron

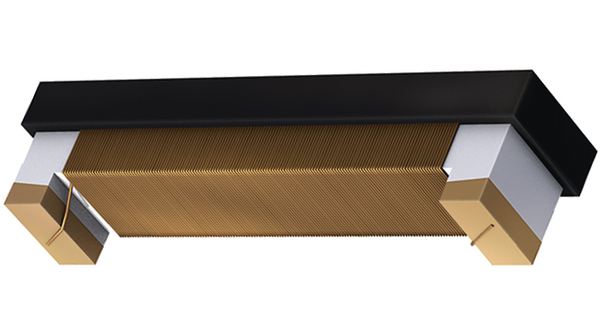

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Fixed Inductors |
| RoHS | RoHS Compliant |
| 电感 | 1.08 mH |
| 容差 | 5 % |
| 最大直流电阻 | 15 Ohms |
| 工作温度范围 | - 40 C to + 125 C |
| 自谐振频率 | 710 kHz |
| 最小Q | 31 |
| 外形尺寸 | 3.2 mm W x 11.6 mm L x 2.84 mm H |
| 屏蔽 | Unshielded |
| 端接类型 | SMD/SMT |
| 封装/外壳 | 4408 |
| 表壳厚度 | 2.84 mm |
| 表壳长度 | 11.6 mm |
| 表壳宽度 | 3.2 mm |
| 芯材 | Ceramic, Ferrite |
| 封装 | Reel |
| 产品 | Transponder Coil |
| 系列 | 4408AF |
| 工厂包装数量 | 3000 |
| Dimensions L x W x H | 11.6 x 3.2 x 2.84 mm |
| IEC-climate category | 55/125/4 |
| Series resistance | 15 Ohm |
| Q factor min | 31 |
| Measurement frequency fL | 125 |
| Measurement frequency fQ | 125 |
| Type of housing/package/case | 4408 |
| Temperature range | -40...+150 °C |
| Self-resonant frequency | 710 |
| 灵敏度 | 19 mV/µT |
| Rated inductance | 1.08 mH |
