Fastron

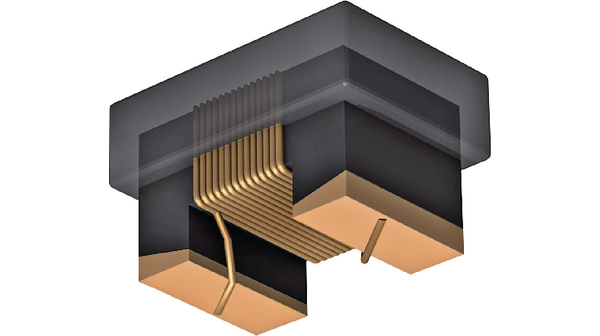

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Fixed Inductors |
| 电感 | 10 uH |
| 容差 | 10 % |
| 最大直流电流 | 150 mA |
| 最大直流电阻 | 3.8 Ohms |
| 工作温度范围 | - 40 C to + 85 C |
| 屏蔽 | Unshielded |
| 端接类型 | SMD/SMT |
| 封装/外壳 | 0805 (2012 metric) |
| 芯材 | Ferrite |
| 封装 | Reel |
| 工厂包装数量 | 2500 |
| Dimensions L x W x H | 2.3 x 1.8 x 1.6 mm |
| IEC-climate category | 55/85/4 |
| Series resistance | 3.8 Ohm |
| 额定电流 | 150 mA |
| Q factor min | 20 |
| Measurement frequency fL | 7.9 |
| Measurement frequency fQ | 7.9 |
| Type of housing/package/case | 0805 |
| Temperature range | -40...+85 °C |
| Self-resonant frequency | 45 |
| Rated inductance | 10 µH |
| Carrier material | Ferrite |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
