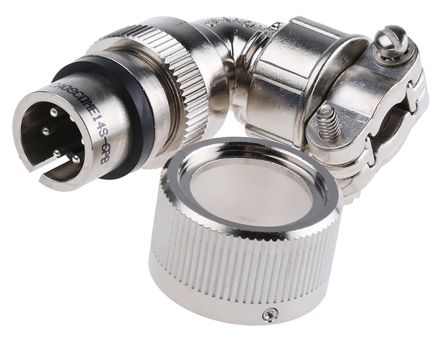

图片仅供参考,产品以实物为准
| 规格书 |
 CA08COME14S-6PB Drawing |
| Rohs | Contains lead / RoHS non-compliant |
| 标准包装 | 1 |
| Connector 型 | Plug, Male Pins |
| 位置数 | 6 |
| 外壳尺寸 - 插件 | 14S-6 |
| Shell Size, MIL | - |
| 安装类型 | Free Hanging (In-Line), Right Angle |
| 终止 | Solder Cup |
| Fastening 型 | Bayonet Lock |
| 取向 | N (Normal) |
| 入口保护 | Waterproof |
| Shell Material, Finish | Aluminum, Nickel Plated |
| 触点表面涂层 | Silver |
| 特点 | Strain Relief |
| 包装材料 | Bulk |
| 触点涂层厚度 | - |
| 额定电流 | 22A |
| 电压 - 额定 | 200VAC, 250VDC |
| 操作温度 | -55°C ~ 125°C |
| 防护等级 | Waterproof |
| 定位 | N (Normal) |
| 电压 - 额定 | 200VAC, 250VDC |
| 安装类型 | Free Hanging (In-Line), Right Angle |
| 端子 | Solder Cup |
| 外壳尺寸 - 插件 | 14S-6 |
| 连接器类型 | Plug, Male Pins |
| 外壳材料，表面处理 | Aluminum, Nickel Plated |
| 触点表面涂层 | Silver |
| 封装 | Bulk |
| 工作温度 | -55°C ~ 125°C |
| 紧固型 | Bayonet Lock |
| 标准包装 | 1 |
| 额定电流 | 22A |
| 位置数 | 6 |
| 产品特点 | Strain Relief |
| 系列 | :CA-COM-Bayonet |
| Connector Body Material | :Aluminium |
| 性别 | :Receptacle |
| 联系人性别 | :Pin |
| Connector Mounting | :Cable |
| Connector Shell Size | :14S |
| 插入安排 | :14S-6 |
| No. of Contacts | :6 |
| 接触端子 | :Crimp |
| 触点材料 | :Copper |
| 触点电镀 | :Silver |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Category | :VG95234 |
| Weight (kg) | 0.01 |
| Tariff No. | 85369010 |
| Weight (g): | 54.41400 |
| mating | CA02COME14S-6SBF80 CA02COME14S-6SB01 |
