Yageo

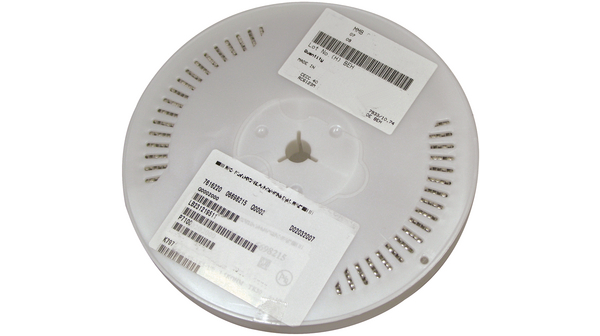

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 匹配代码 | RC25120R |
| 值范围 | JUMPER |
| Max.oper.volt | 200V |
| 包装 | 2512 |
| 单位包 | 4000 |
| 标准的提前期 | 15 weeks |
| 最小起订量 | 16000 |
| Spec.features | 2 AMPERE |
| 封装 | REEL |
| Res.tolerance | 5% |
| Max.oper.temp. | 155°C |
| 汽车 | AEC-Q(200) |
| 电阻值 | 0.05R |
| Min.oper.temp. | -55°C |
| 技术 | THICKFILM |
| 无铅Defin | RoHS-conform |
| 电阻（欧姆） | 0.0 |
| 端子数 | 2 |
| 供应商设备封装 | 2512 |
| 身高 | 0.026" (0.65mm) |
| 尺寸/尺寸 | 0.250" L x 0.122" W (6.35mm x 3.10mm) |
| 功率（瓦特） | 1W |
| 标准包装 | 4,000 |
| 容差 | Jumper |
| 成分 | Thick Film |
| 封装/外壳 | 2512 (6432 Metric) |
| RoHS指令 | Lead free / RoHS Compliant |
| 其他名称 | YAG1232CT |
| 产品 | Thick Film Resistors Zero-Ohm |
| 工作温度范围 | - 55 C to + 155 C |
| 系列 | RC |
| 案例代码 - 毫米 | 6432 |
| 电阻 | 0 Ohms |
| 表壳长度 | 6.35 mm |
| 案例代码 - 在 | 2512 |
| 表壳厚度 | 0.55 mm |
| 封装/外壳 | 2512 (6432 metric) |
| 类型 | General Purpose Chip Resistor Surface Mount |
| 表壳宽度 | 3.1 mm |
| RoHS | RoHS Compliant |
| 产品范围 | :YAGEO - RC Series |
| 额定功率 | :1W |
| 电阻公差 | :- |
| Resistor Case Style | :2512 [6432 Metric] |
| Resistor Element Material | :Thick Film |
| 温度系数 | :± 300ppm/°C |
| 额定电压 | :200V |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| Weight (kg) | 0.000043 |
| Tariff No. | 85332100 |
| Climatic Category | :55/125/56 |
| 外部深度 | :0.55mm |
| External Length / Height | :6.4mm |
| 外宽 | :3.1mm |
| Full Power Rating Temperature | :70°C |
| No. of Pins | :2 |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| Reel Quantity | :4000 |
| Resistor Mounting | :SMD |
| Temperature Coeff. + | :300ppm/°C |
| Temperature Coeff. - | :300ppm/°C |
| Voltage Rating V AC | :200V |
| Voltage Rating V DC | :200V |
| 产品特点 | Moisture Resistant |
| 案例 | 2512 |
| 功率 | 1W |
| 安装 | SMD |
| Resistor type | thick film |
| Gross weight | 0.03 g |
| Operating temperature | -55...155°C |
| spg | 4000 |
| Multiplicity | 100 |
| Max operating voltage | 200V |
| Collective package [pcs] | 4000 |
| Max overload voltage | 500V |
