Yageo

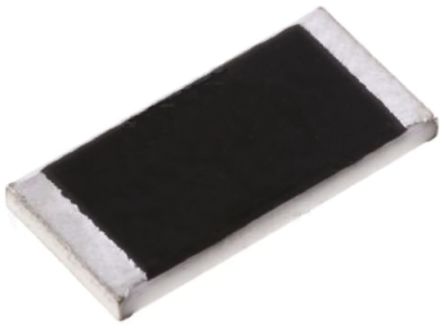

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Temp.coeff | 100ppm |
| 匹配代码 | RC2512100R1% |
| Max.oper.volt | 200V |
| 包装 | 2512 |
| 单位包 | 4000 |
| 标准的提前期 | 15 weeks |
| 最小起订量 | 12000 |
| 封装 | REEL |
| Res.tolerance | 1% |
| Max.oper.temp. | 155°C |
| 汽车 | AEC-Q(200) |
| 电阻值 | 100R |
| 额定功率 | 1W |
| 技术 | THICKFILM |
| Min.oper.temp. | -55°C |
| 无铅Defin | RoHS-conform |
| RoHS指令 | Compliant |
| 产品 | Thick Film Resistors General Purpose |
| 工作温度范围 | - 55 C to + 155 C |
| 系列 | RC |
| 案例代码 - 毫米 | 6432 |
| 额定电压 | 200 V |
| 电阻 | 100 Ohms |
| 温度系数 | 100 PPM / C |
| 容差 | 1 % |
| 表壳长度 | 6.35 mm |
| 案例代码 - 在 | 2512 |
| 表壳厚度 | 0.55 mm |
| 封装/外壳 | 2512 (6432 metric) |
| 额定功率 | 1 W |
| 类型 | General Purpose Chip Resistor Surface Mount |
| 表壳宽度 | 3.1 mm |
| RoHS | RoHS Compliant |
| 产品范围 | :YAGEO - RC Series |
| 电阻公差 | :± 1% |
| Resistor Case Style | :2512 [6432 Metric] |
| Resistor Element Material | :Thick Film |
| MSL | :- |
| SVHC | :No SVHC (20-Jun-2013) |
| 外部深度 | :0.55mm |
| External Length / Height | :6.35mm |
| 外宽 | :3.1mm |
| No. of Pins | :2 |
| Operating Temperature Max | :155°C |
| Operating Temperature Min | :-55°C |
| Reel Quantity | :4000 |
| Resistor Mounting | :SMD |
| Temperature Coeff. + | :100ppm/°C |
| Temperature Coeff. - | :100ppm/°C |
| Tolerance + | :1% |
| Tolerance - | :1% |
| Voltage Rating V DC | :200V |
| Weight (kg) | 0.00425 |
| Tariff No. | 85332100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
