Bulgin

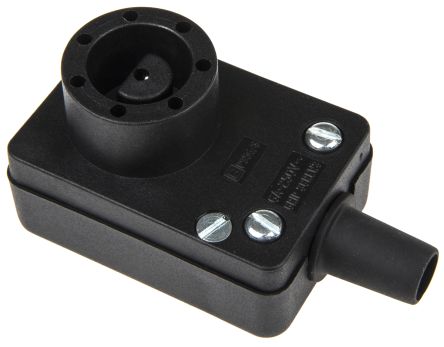

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 触点材料 | Brass |
| 触点电镀 | Tin |
| 额定电流 | 6A |
| 性别 | Female |
| 最高工作温度 | +70°C |
| 最低工作温度 | -20°C |
| 安装类型 | Cable Mount |
| 插头/插座 | Plug |
| 端接方式 | Screw Down |
| 额定电压 | 250 V ac |
| 系列 | :- |
| Connector Mounting | :Cable |
| 接触端子 | :Screw / Solder |
| SVHC | :No SVHC (19-Dec-2012) |
| 颜色 | :Black |
| 连接器类型 | :Standard Power Entry |
| 外部深度 | :22mm |
| External Length / Height | :57.3mm |
| 外宽 | :40.1mm |
| 材质 | :Black nylon GF |
| No. of Outlets | :1 |
| No. of Poles | :8 |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| Voltage Rating V AC | :250V |
| Weight (kg) | 0.048 |
| Tariff No. | 85369010 |
| Electrical mounting | soldering, screw terminal |
| Mechanical mounting | for cable |
| 额定电流 | 6A |
| Multiplicity | 1 |
| Connector type | female |
| Spatial orientation | angled 90° |
| 连接器 | plug |
| Gross weight | 0.05 kg |
| Body material | polyamide |
| Operating temperature | -20...70°C |
| 针数 | 8 |
| Cable external diameter | 9mm |
| 额定电压 | 250V AC |
| Collective package [pcs] | 100 |
| spg | 100 |
| RESOURCE TYPE | LINK |
|---|---|
