Bulgin

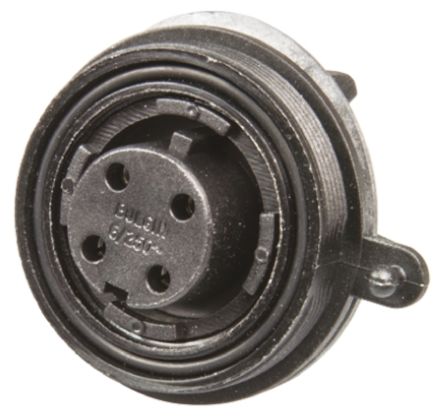

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Standard Circular Connector |
| RoHS | RoHS Compliant |
| 系列 | Buccaneer |
| 产品类型 | Connectors |
| 位置/触点数 | 4 |
| 联系人性别 | Socket (Female) |
| 安装风格 | Panel |
| 端接类型 | Screw |
| 额定电压 | 250 V |
| 额定电流 | 6 A |
| 外壳电镀 | Nickel |
| 外壳类型 | Receptacle |
| 工厂包装数量 | 25 |
| 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 定位 | Keyed |
| 电压 - 额定 | 277VAC/DC |
| 安装类型 | Panel Mount |
| 端子 | Screw |
| 连接器类型 | Receptacle, Female Sockets |
| 外壳材料，表面处理 | Polyamide, Glass Filled |
| 触点表面涂层 | Nickel |
| 封装 | Bulk |
| 工作温度 | -20°C ~ 70°C |
| 紧固型 | Threaded |
| 标准包装 | 25 |
| 位置数 | 4 |
| RoHS指令 | Lead free / RoHS Compliant |
| 身体上的取向 | Straight |
| 触点材料 | Brass |
| 触点电镀 | Nickel |
| 最高工作温度 | +70°C |
| 最低工作温度 | -20°C |
| 触点数 | 4 |
| 端接方式 | Screw Down |
| Connector Body Material | :Glass Filled Nylon (Polyamide) |
| 性别 | :Receptacle |
| Connector Mounting | :Panel |
| Connector Shell Size | :- |
| 插入安排 | :- |
| No. of Contacts | :4 |
| 接触端子 | :Screw |
| SVHC | :No SVHC (19-Dec-2012) |
| Cable Diameter Max | :8.1mm |
| 颜色 | :Black |
| 接触电阻最大 | :10mohm |
| External Diameter | :38.1mm |
| External Length / Height | :28mm |
| 可燃性等级 | :UL94V-0 |
| IP / NEMA Rating | :IP68 |
| 绝缘电阻 | :100Mohm |
| Moulding Material | :Glass Filled Nylon |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| Panel Thickness Max | :6.4mm |
| Panel Thickness Min | :0.8mm |
| Voltage Rating V AC | :250V |
| Voltage Rating V DC | :250V |
| 工作电压 | :250V |
| Weight (kg) | 0.02 |
| Tariff No. | 85369010 |
| AgencyApprovals | ULRecognized/CSA/VDE |
| Angle | Straight |
| ContactPlating | Nickel |
| ContactType | Socket |
| Current,Rating | 6A |
| Diameter,Cable | 6-8mm |
| FlammabilityRating | UL94-HB |
| HousingType | Plastic |
| IPRating | IP68 |
| Material,Dielectric | Polyamide |
| Material,Housing | GlassFilledPolyamide |
| MatingType | Threaded |
| MountMethod | Front |
| NumberofContacts | 4 |
| PrimaryType | Sealed |
| 类型 | PanelSocket |
| Voltage,Rating | 250VAC/VDC |
| Wire,AWG | 16 |
| 锁定系统 | threaded joint, external thread |
| Mechanical mounting | for panel mounting, rear side nut, screwed |
| Flammability rating | UL94V-0 |
| 额定电流 | 10A |
| Multiplicity | 1 |
| Connector type | female |
| 连接器 | socket |
| Gross weight | 0.02 kg |
| Operating temperature | -20...70°C |
| 针数 | 4 |
| 额定电压 | 250V |
| Connector series | Buccaneer Standard |
| 密封 | IP68 |
| spg | 25 |
| Collective package [pcs] | 25 |
| Enclosure material | polyamide |
| Electrical mounting | screw terminal |
