Bulgin

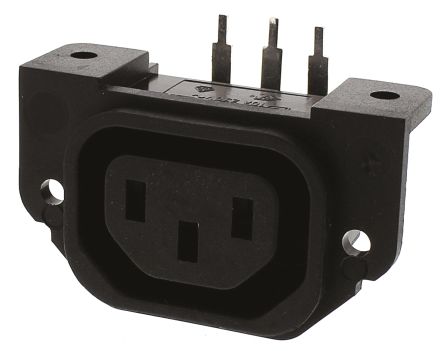

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 安装类型 | Panel Mount, Screw Hole; Through Hole, Right Angle |
| 端接类型 | Solder |
| 连接器类型 | Receptacle, Female Sockets |
| 电流 | 10A |
| 保险丝盒 | Drawer Not Required |
| 电压 | 250V |
| 标准包装 | 100 |
| 连接器类型 | IEC 320-C13 |
| 位置数 | 3 |
| 身体上的取向 | Right Angle |
| 额定电流 | 10A |
| 性别 | Male |
| IEC连接器类型 | C13 |
| 端接方式 | Solder |
| 额定电压 | 250 V ac |
| RoHS指令 | Compliant |
| 工厂包装数量 | 100 |
| 产品 | Outlets |
| 产品种类 | AC Power Entry Modules |
| 外壳材料 | Nylon |
| 工作温度范围 | - 40 C to + 70 C |
| 安装风格 | Flange |
| 开关功能 | Not Switched |
| 可燃性等级 | UL 94 V-0 |
| 触点电镀 | Tin |
| 过滤 | No |
| 融合 | No |
| RoHS | RoHS Compliant |
| 系列 | :- |
| Connector Mounting | :Panel |
| 接触端子 | :Through Hole Right Angle |
| SVHC | :No SVHC (19-Dec-2012) |
| Approval Category | :CSA, IMQ, SEMKO, UL, VDE |
| 外壳材料 | :Black, nylon |
| 固定中心 | :40mm |
| 安装孔直径 | :3.45mm |
| No. of Outlets | :1 |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-40°C |
| Panel Cut-out Size | :26.4 x 34.7mm |
| Voltage Rating V AC | :250V |
| Weight (kg) | 0.01 |
| Tariff No. | 85369010 |
| Electrical mounting | THT |
| Mechanical mounting | for panel mounting, screwed |
| Flammability rating | UL94V-0 |
| 连接器 | socket |
| 额定电流 | 10A |
| Multiplicity | 1 |
| Connector variant | C13 (F) |
| Connector type | female |
| Gross weight | 0.02 kg |
| Mounting hole diameter | 3.4mm |
| Body material | polyamide |
| Operating temperature | -40...70°C |
| 额定电压 | 250V AC |
| Mounting holes pitch | 40mm |
| Collective package [pcs] | 100 |
| spg | 100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
