Bulgin

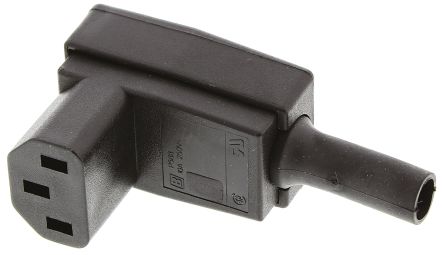

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 安装类型 | Free Hanging (In-Line), Right Angle |
| 端接类型 | Screw |
| 连接器类型 | Plug, Female Sockets |
| 位置数 | 3 |
| 电流 | 10A |
| 保险丝盒 | Drawer Not Required |
| 电压 | 250V |
| 标准包装 | 100 |
| 连接器类型 | IEC 320-C13 |
| 其他名称 | 708-1344 |
| 身体上的取向 | Right Angle |
| 额定电流 | 10A |
| 性别 | Female |
| IEC连接器类型 | C13 |
| 端接方式 | Screw Down |
| 额定电压 | 250 V ac |
| RoHS指令 | Compliant |
| 工厂包装数量 | 100 |
| 产品 | Inlets |
| 产品种类 | AC Power Entry Modules |
| 外壳材料 | Nylon |
| 工作温度范围 | - 40 C to + 70 C |
| 安装风格 | Cable |
| 开关功能 | Not Switched |
| 可燃性等级 | UL 94 V-0 |
| 过滤 | No |
| 融合 | No |
| RoHS | RoHS Compliant |
| 系列 | :- |
| Connector Mounting | :Cable |
| 接触端子 | :Screw |
| Approval Category | :BSI, CSA, SEMKO, SEV, UL |
| 外壳材料 | :Black nylon |
| 颜色 | :Black |
| 外部深度 | :38.2mm |
| External Length / Height | :70.4mm |
| 外宽 | :27.4mm |
| No. of Outlets | :1 |
| No. of Poles | :3 |
| Voltage Rating V AC | :250V |
| Weight (kg) | 0.026 |
| Tariff No. | 85369010 |
| Electrical mounting | screw terminal |
| Mechanical mounting | for cable |
| Flammability rating | UL94V-0 |
| 额定电流 | 10A |
| Multiplicity | 1 |
| Connector variant | C13 (F) |
| Connector type | female |
| Spatial orientation | angled 90° |
| 连接器 | plug |
| Gross weight | 0.03 kg |
| Body material | polyamide |
| Operating temperature | -40...70°C |
| 额定电压 | 250V AC |
| Collective package [pcs] | 100 |
| spg | 100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
